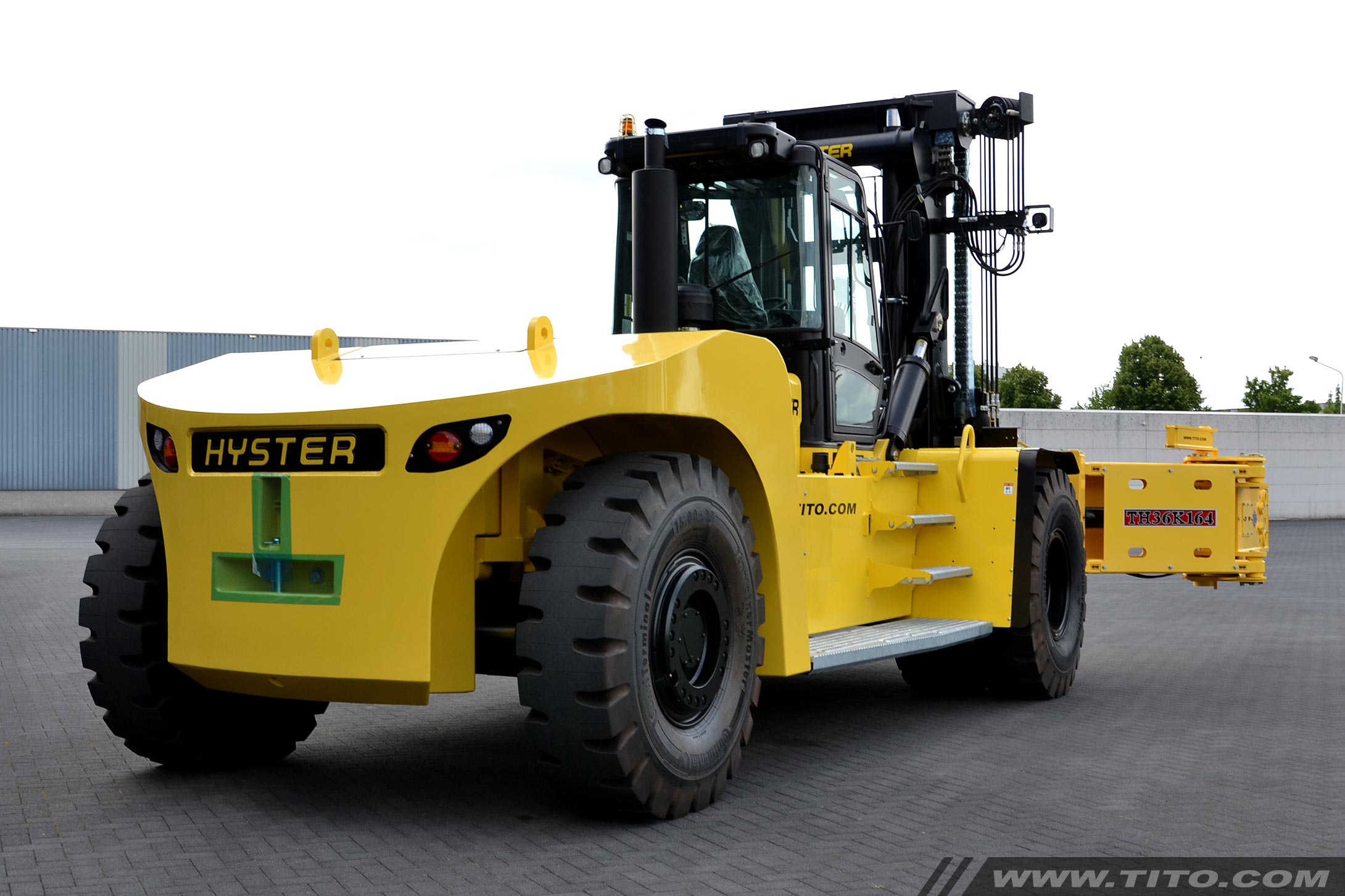

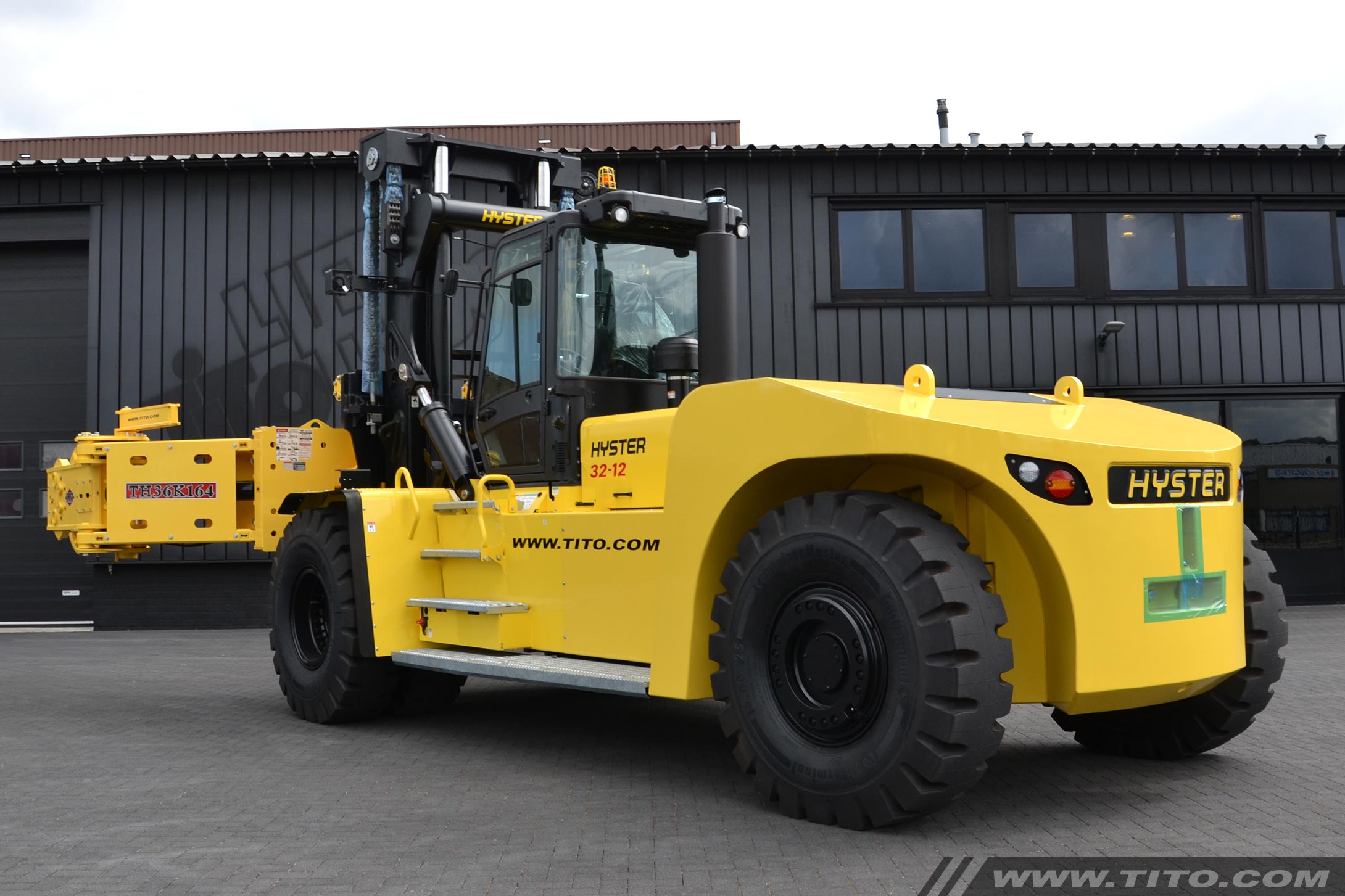

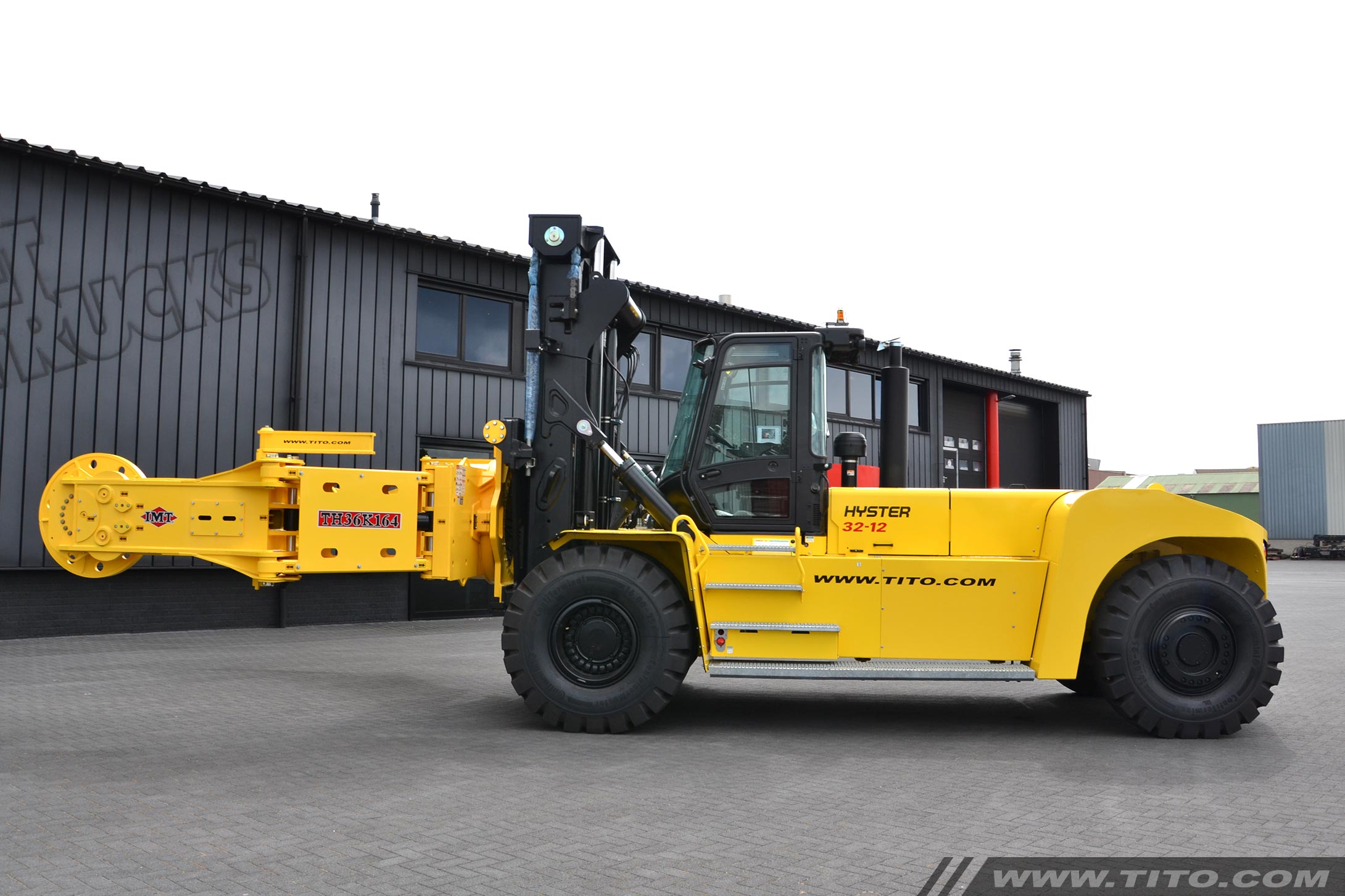

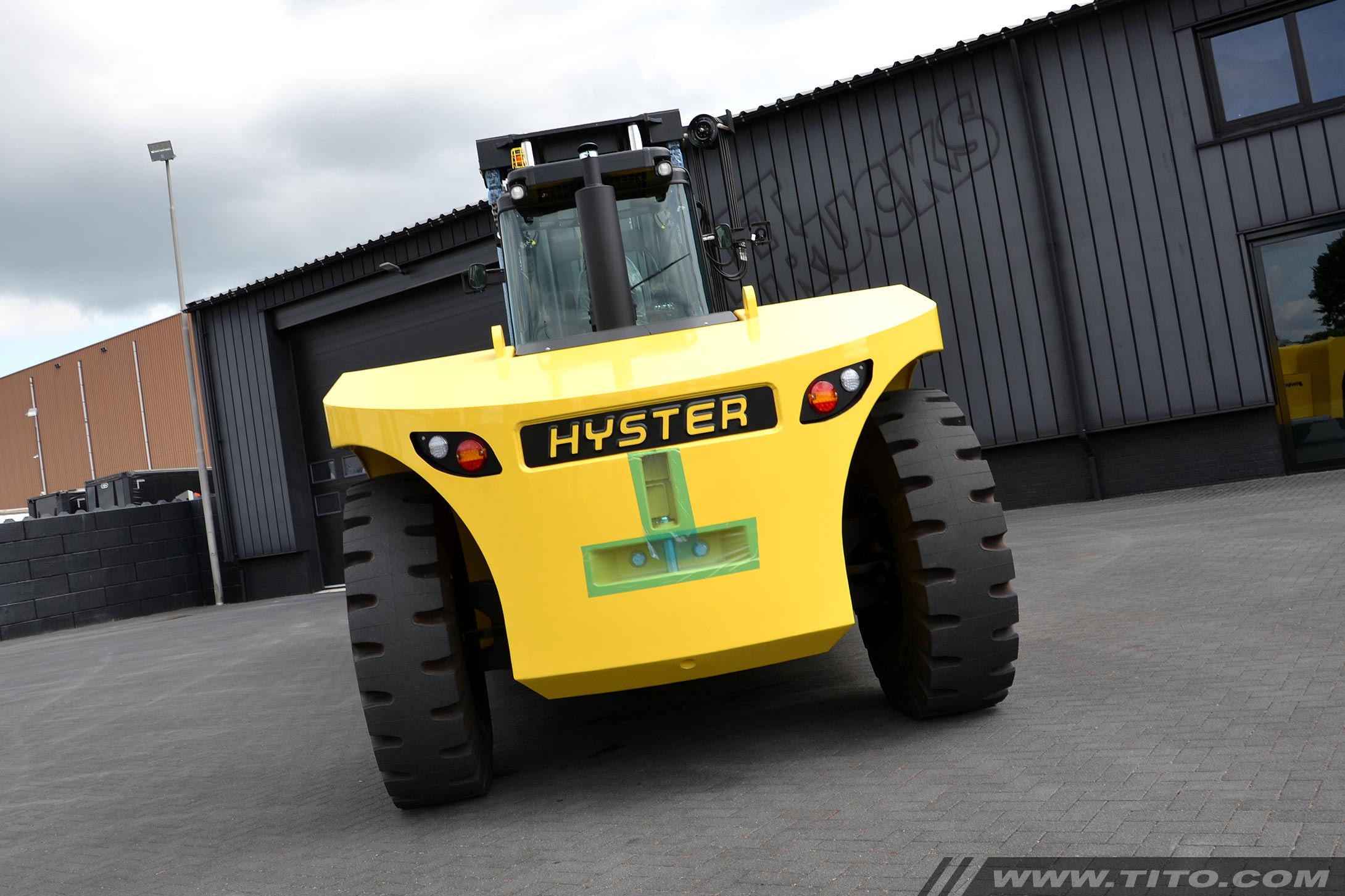

Hyster Tire Handler H32XM-12 for sale

General

TLT#
64023
Brand
Hyster
Model
H32XM-12
Year
2019
Type
Tire Handler
Service weight
50.000 kg
Capacity
16.330 kg
Condition
New
Hour meter reading
10

Mast

Mast
2-Stage
Lift height
4.700 mm
Closed Height
3.919 mm
Free-lift
0 mm
Side-shift
Yes

Driveline

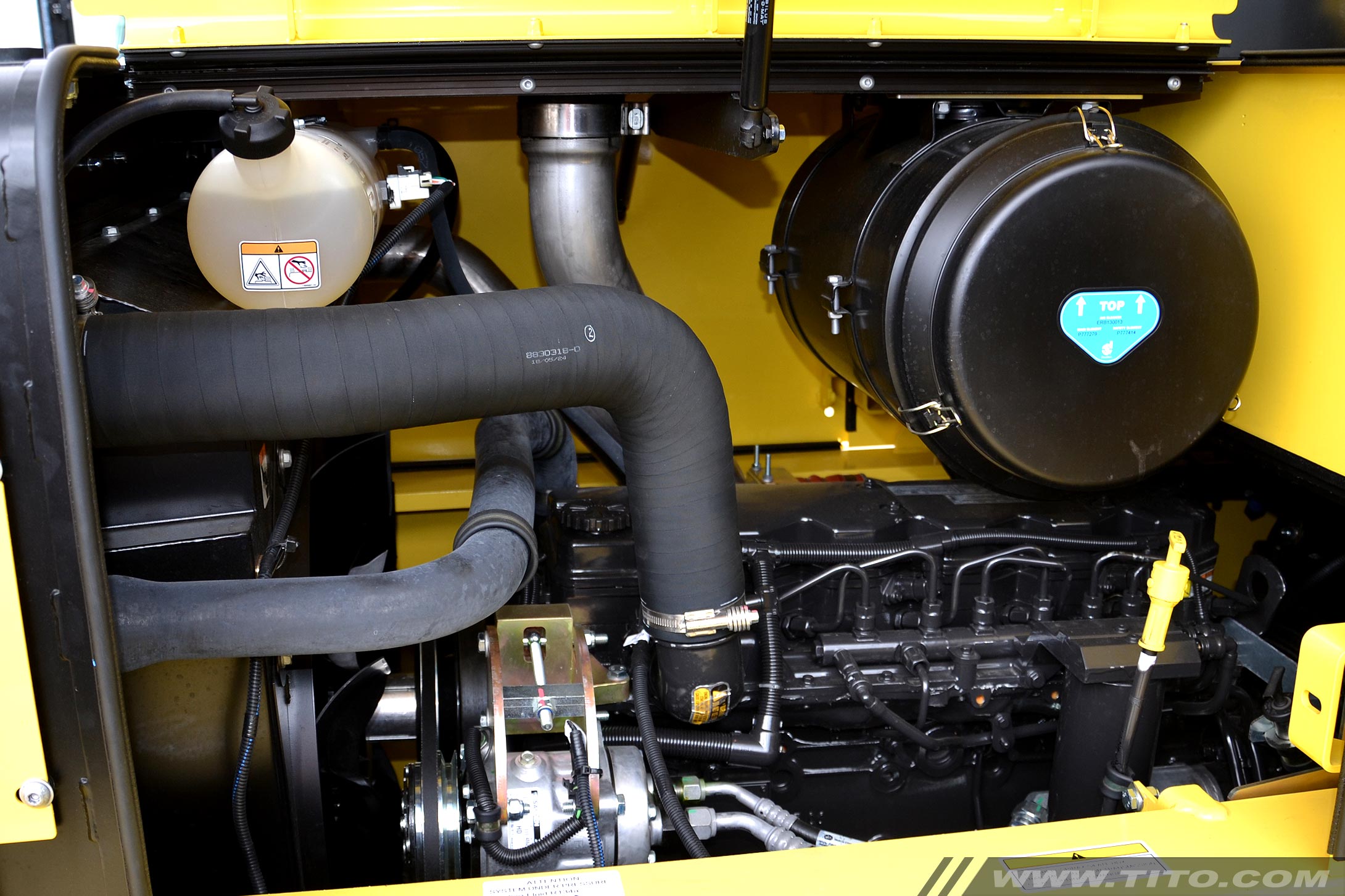

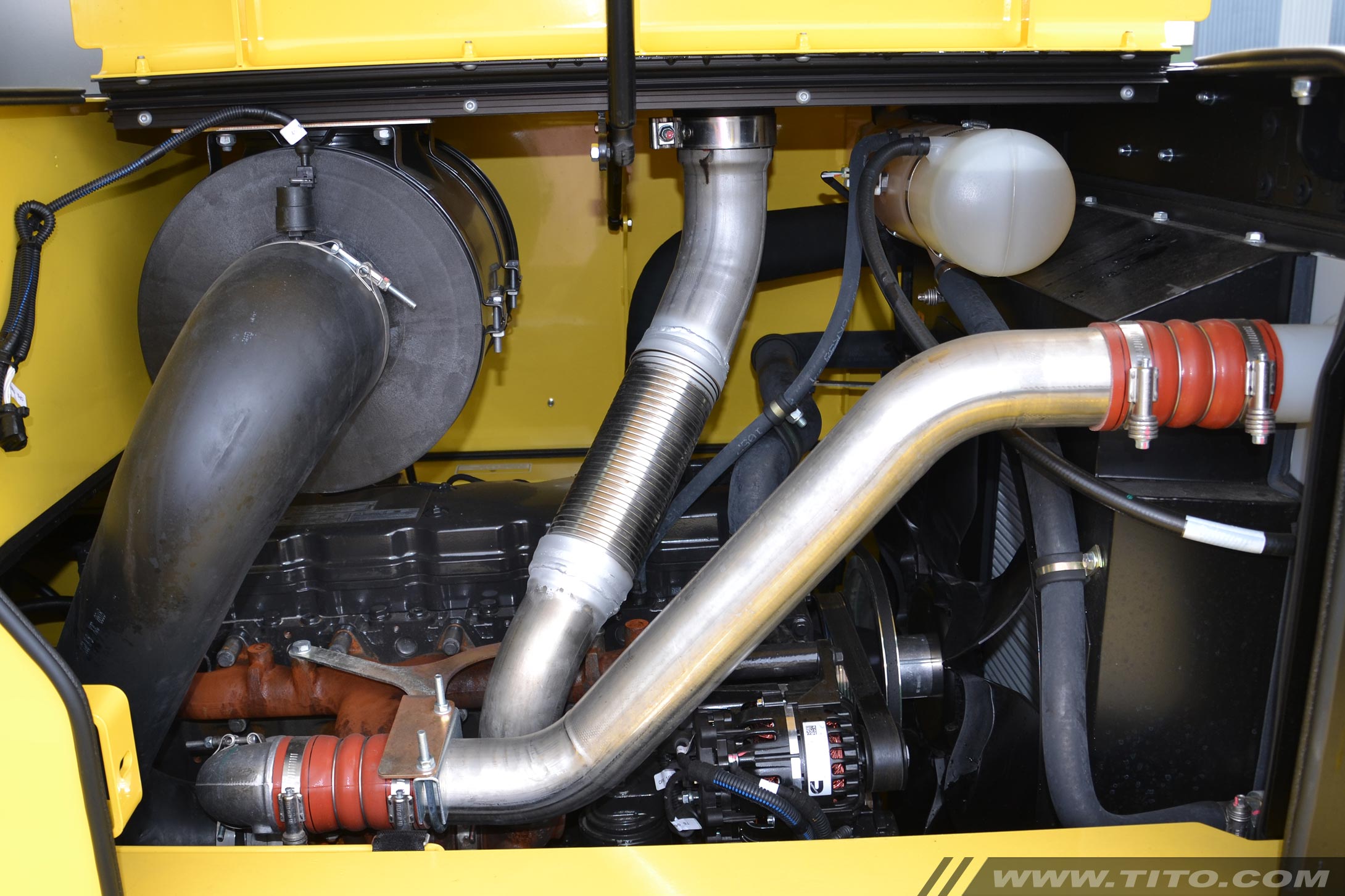

Engine
Cummins QSC6.7
Engine type
6.7L 6 cylinder diesel, stage 3A
Engine Output
260 Hp
Transmission
ZF 5WG211
Transmission type
3-speed autoshift transmission
Drive axle
AxleTech PRC-3806
Brakes
Oil immersed wet disc brakes

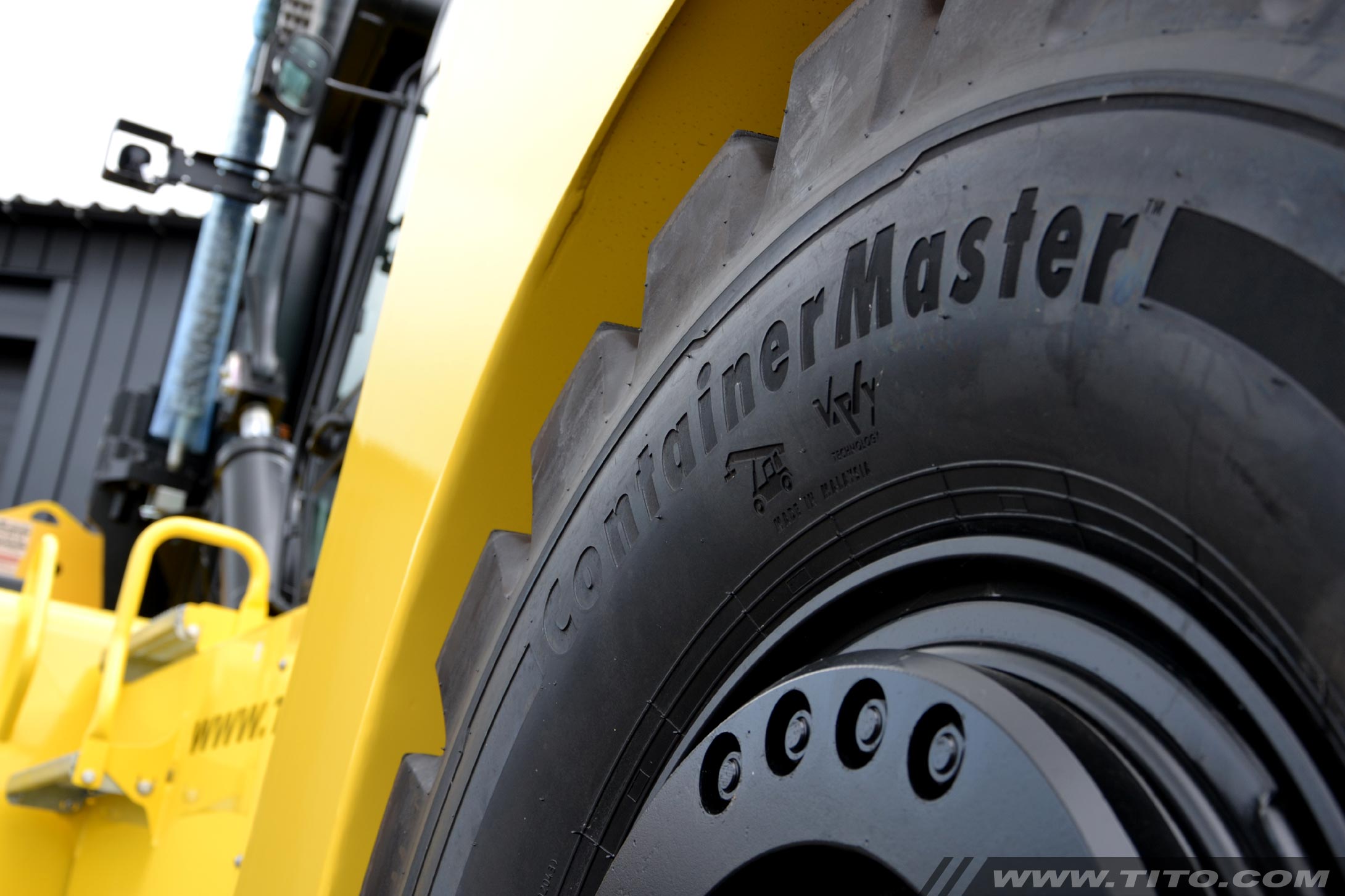

Tires

Tires front
Continental 16.00 x 25 pneumatic
Condition front
100%
Tires rear
Continental 16.00 x 25 pneumatic
Condition rear
100%

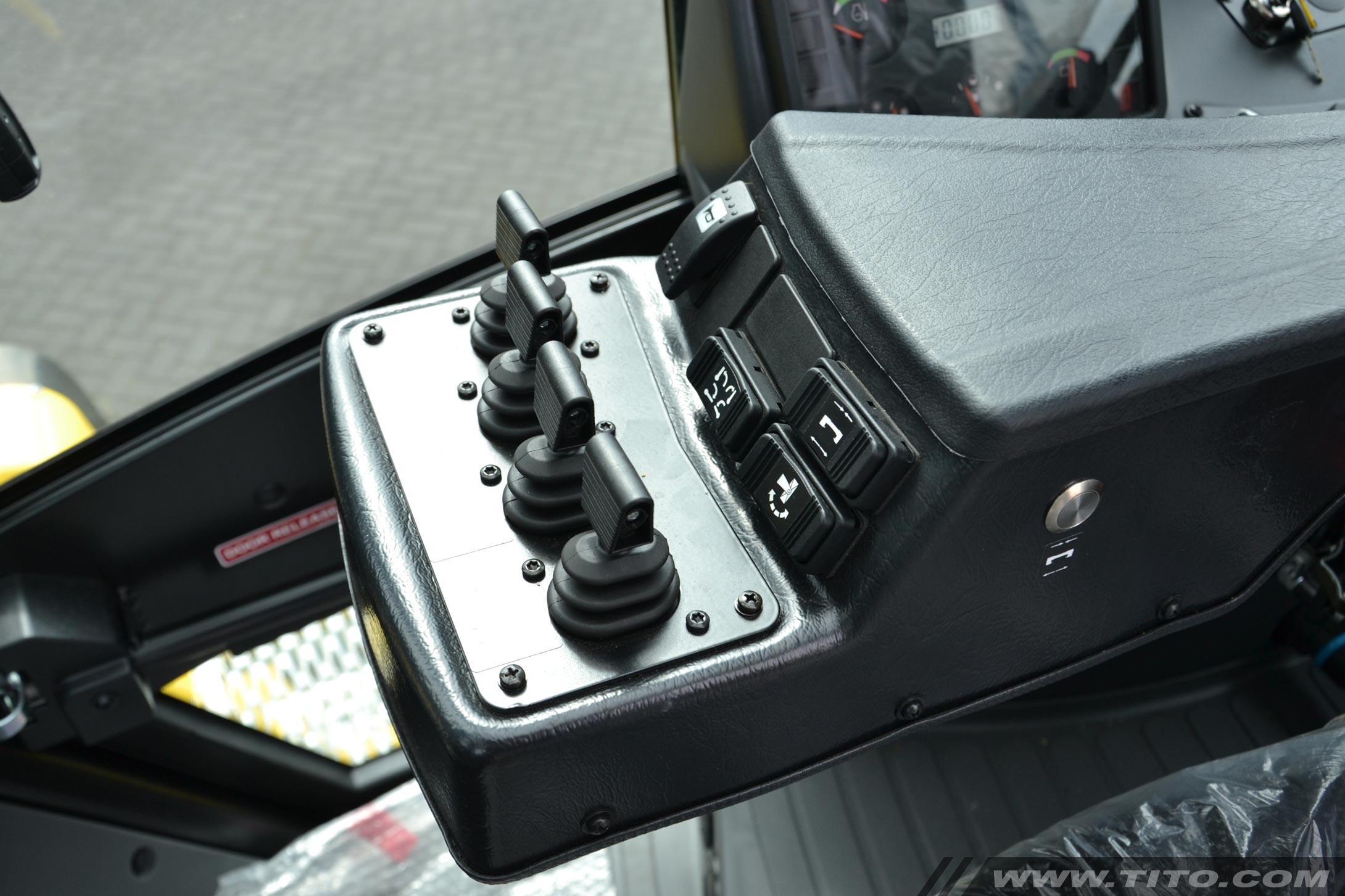

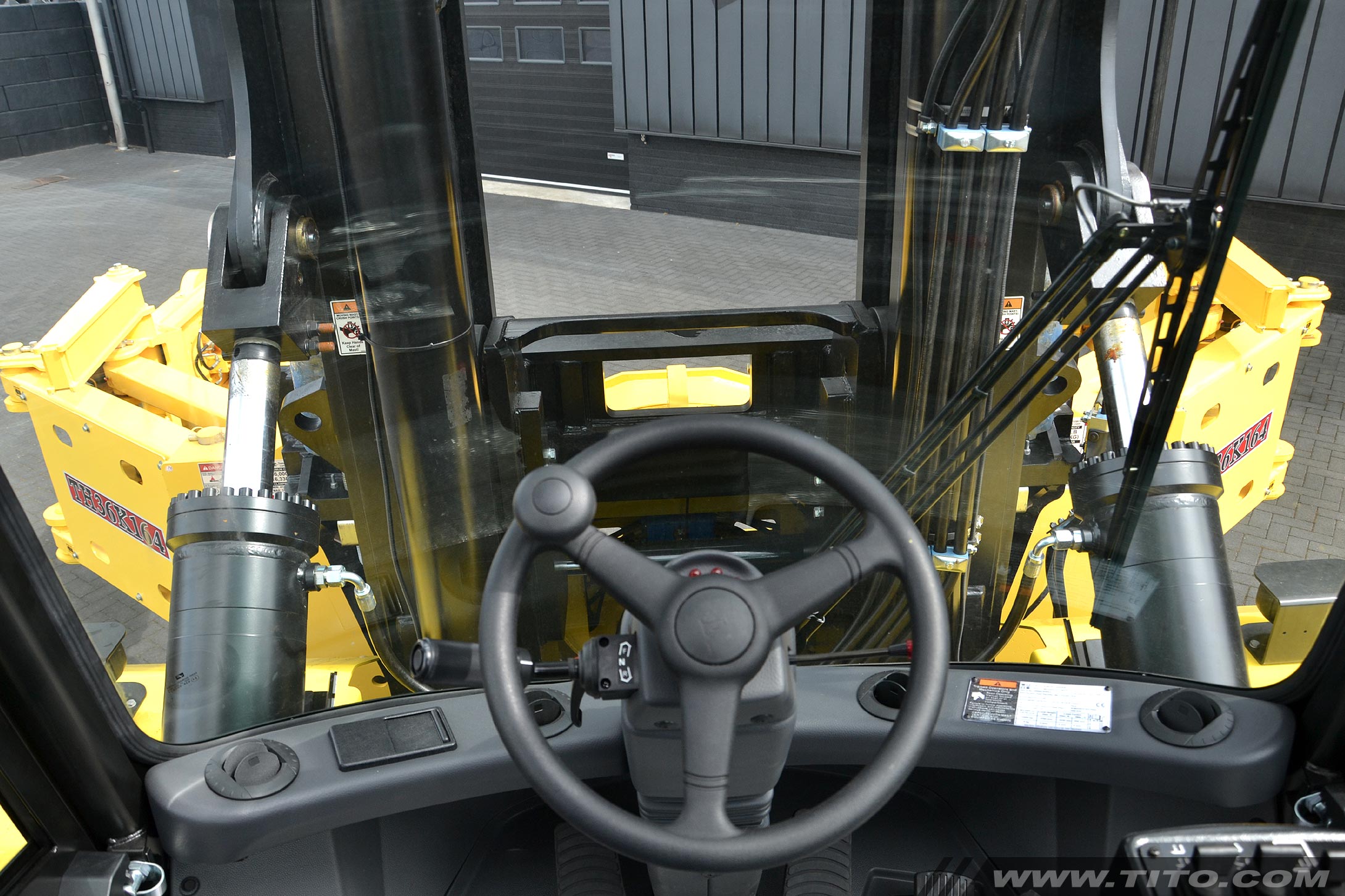

Cabin

Cabin

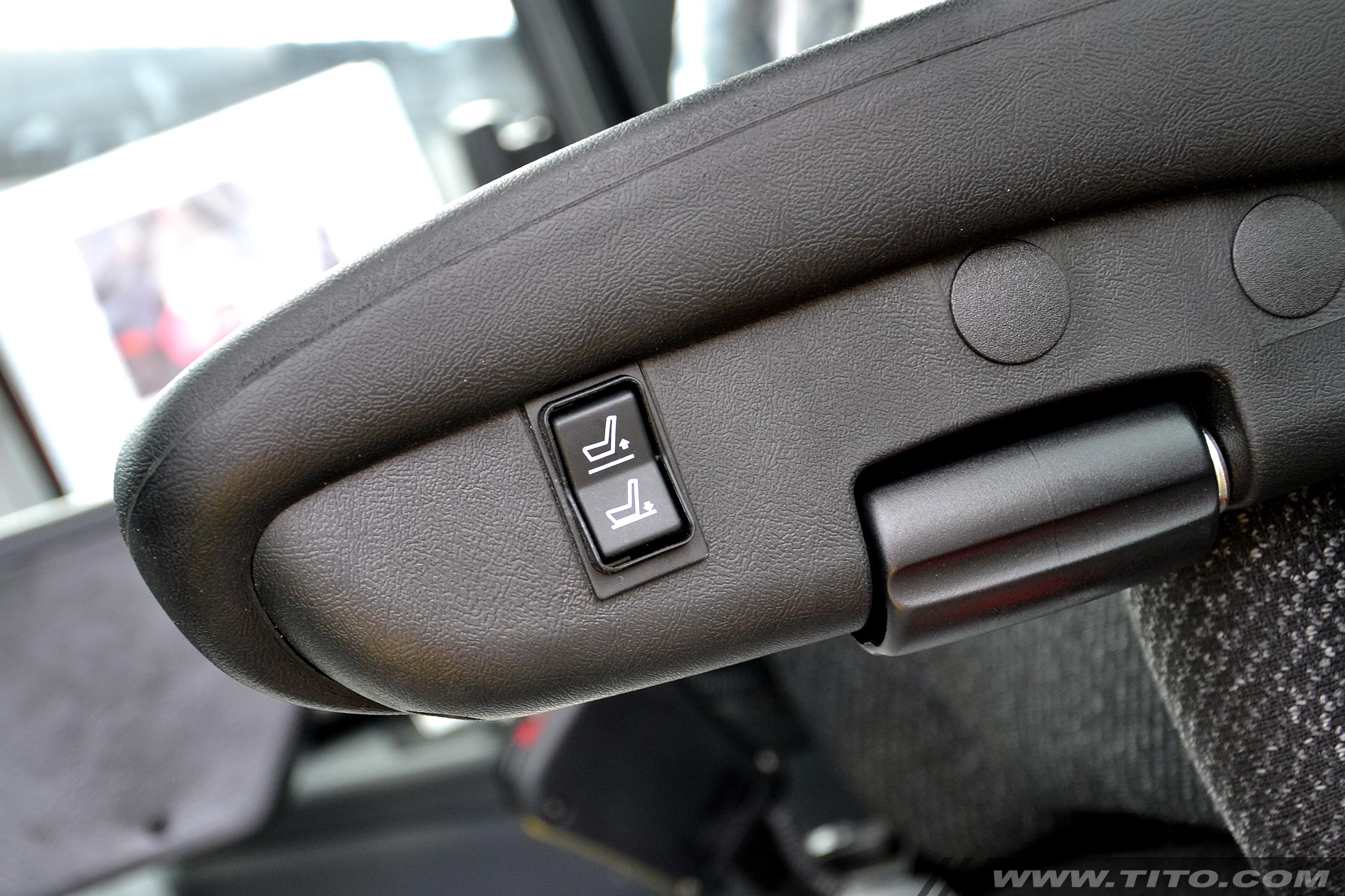

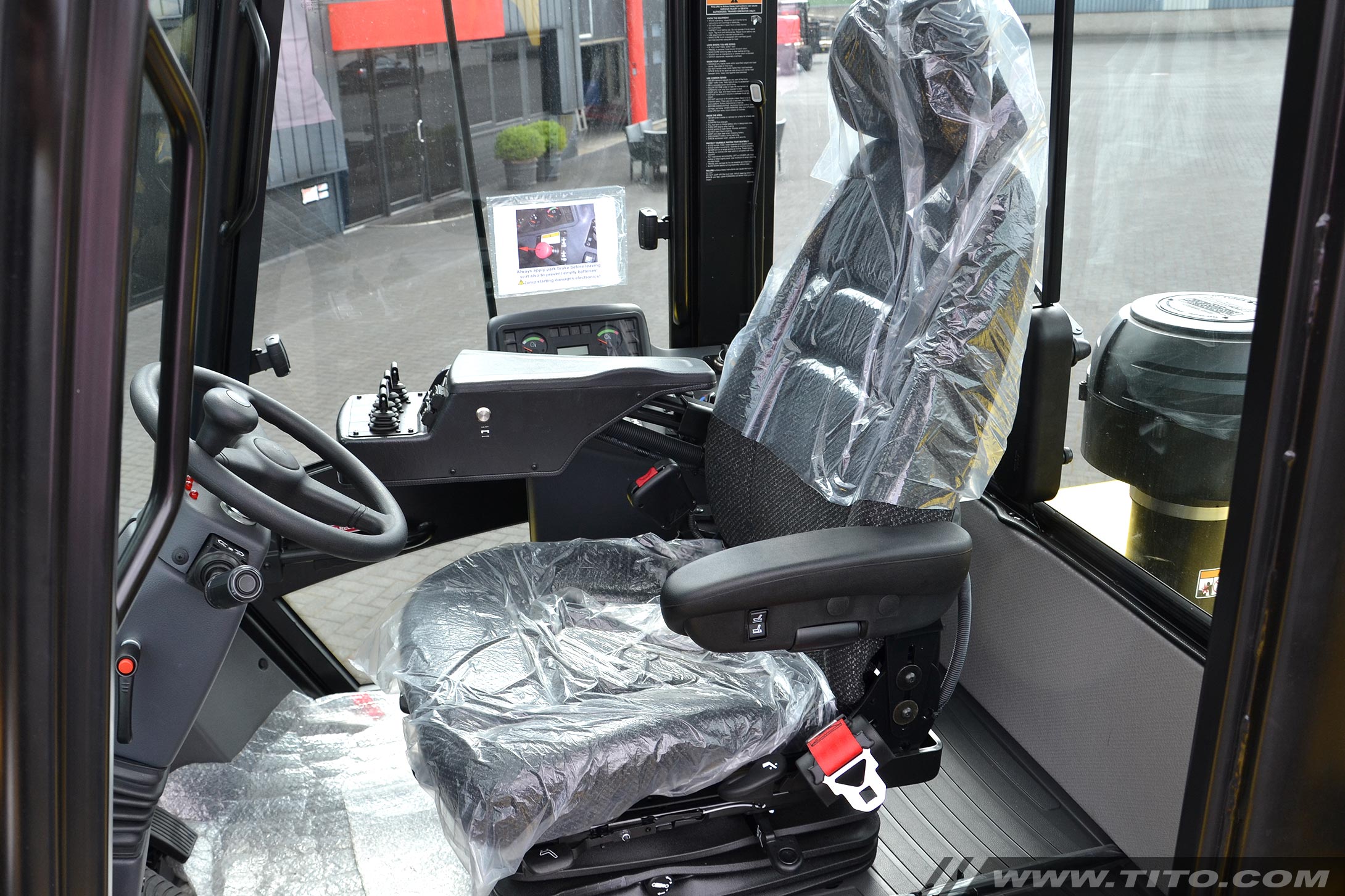

Full Hyster cabin with Sears DeLuxe air suspended seat with high backrest
Heater
Yes
Air Conditioning
Yes

Lights

Lights
Complete light kit including orange flash light
Back-up alarm
Yes

Extra’s

Powered tilting cabin (for easy maintenance), hydraulic accumulator, speed limiter 16 km/h.

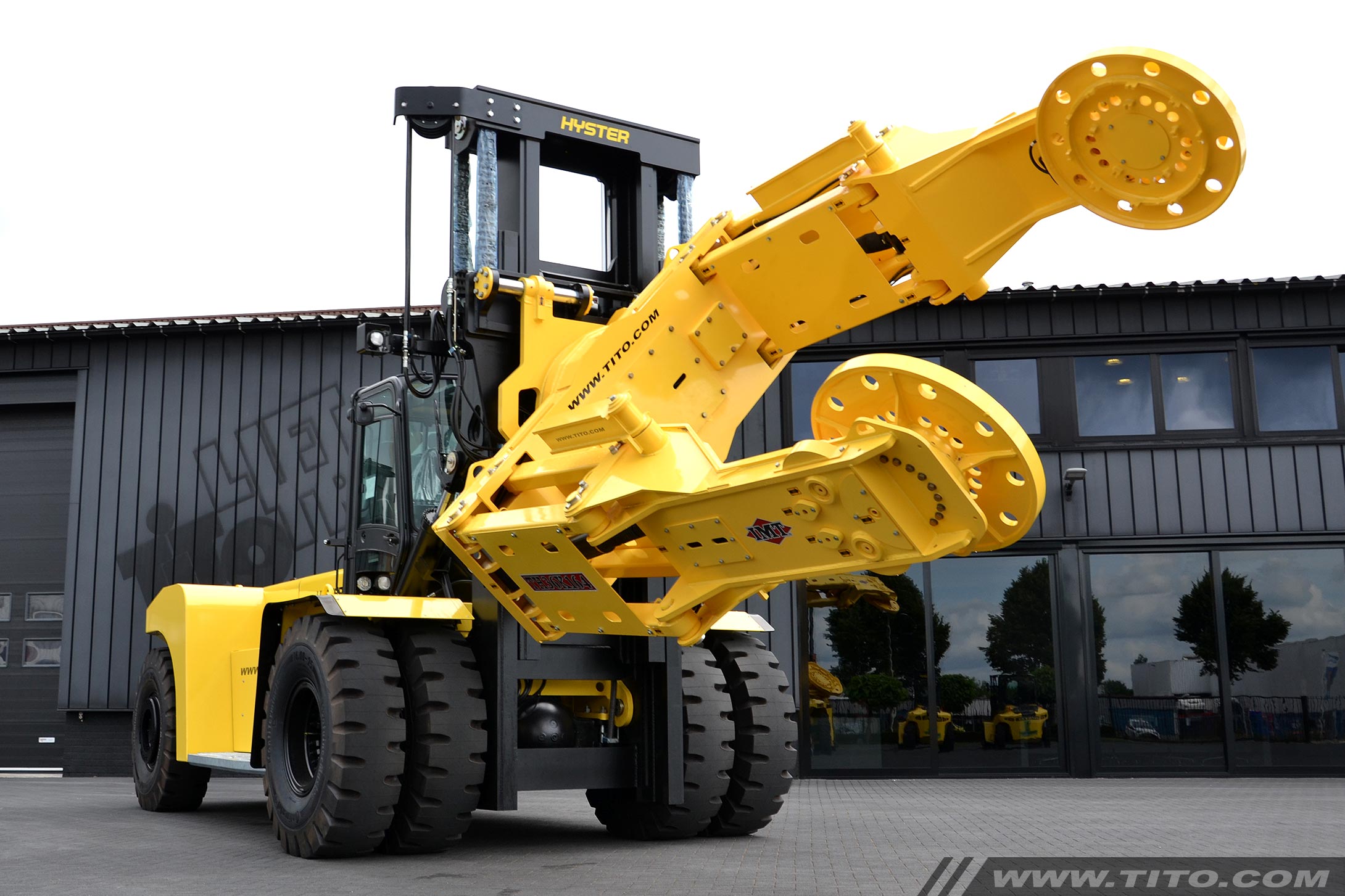

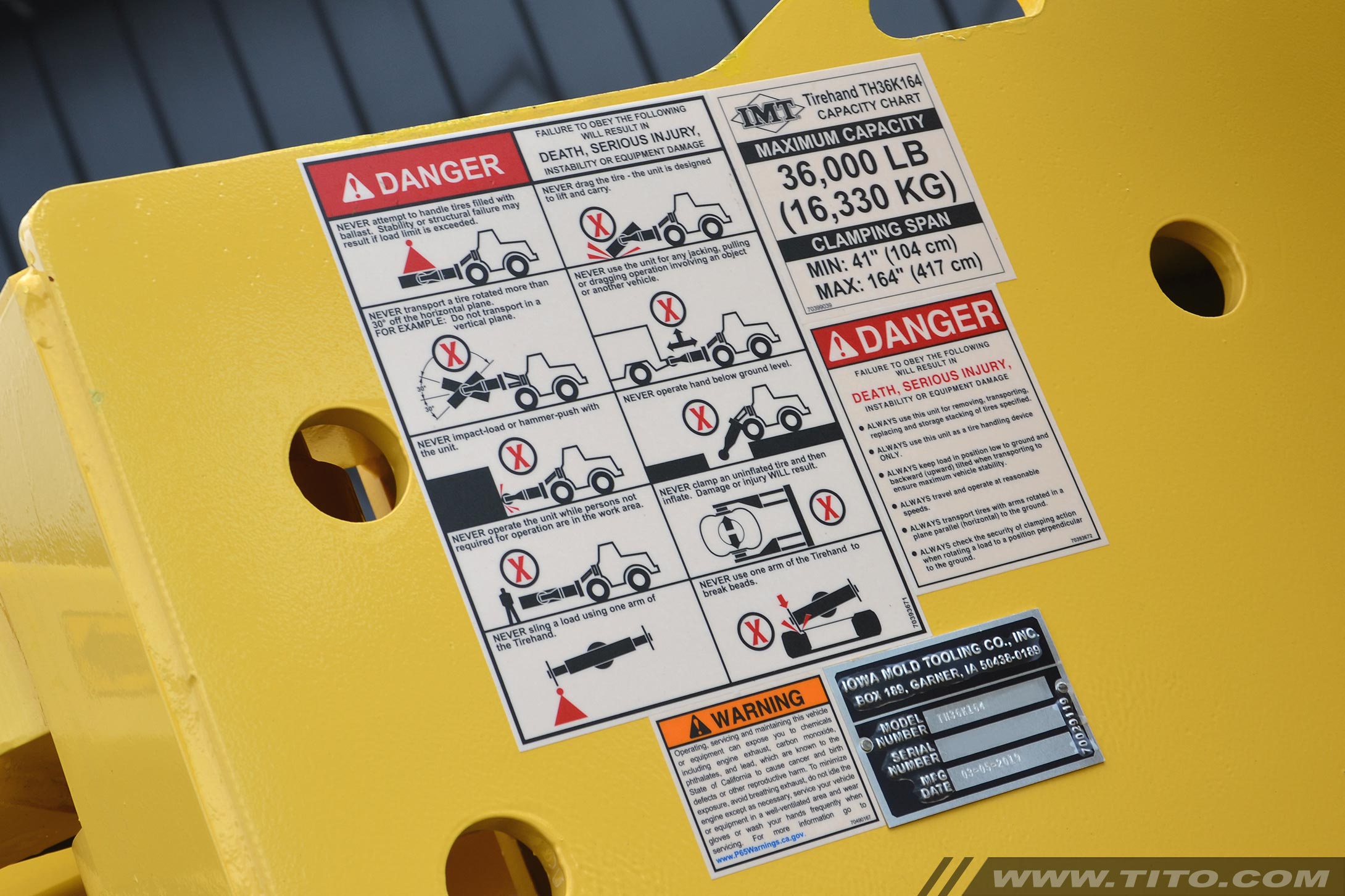

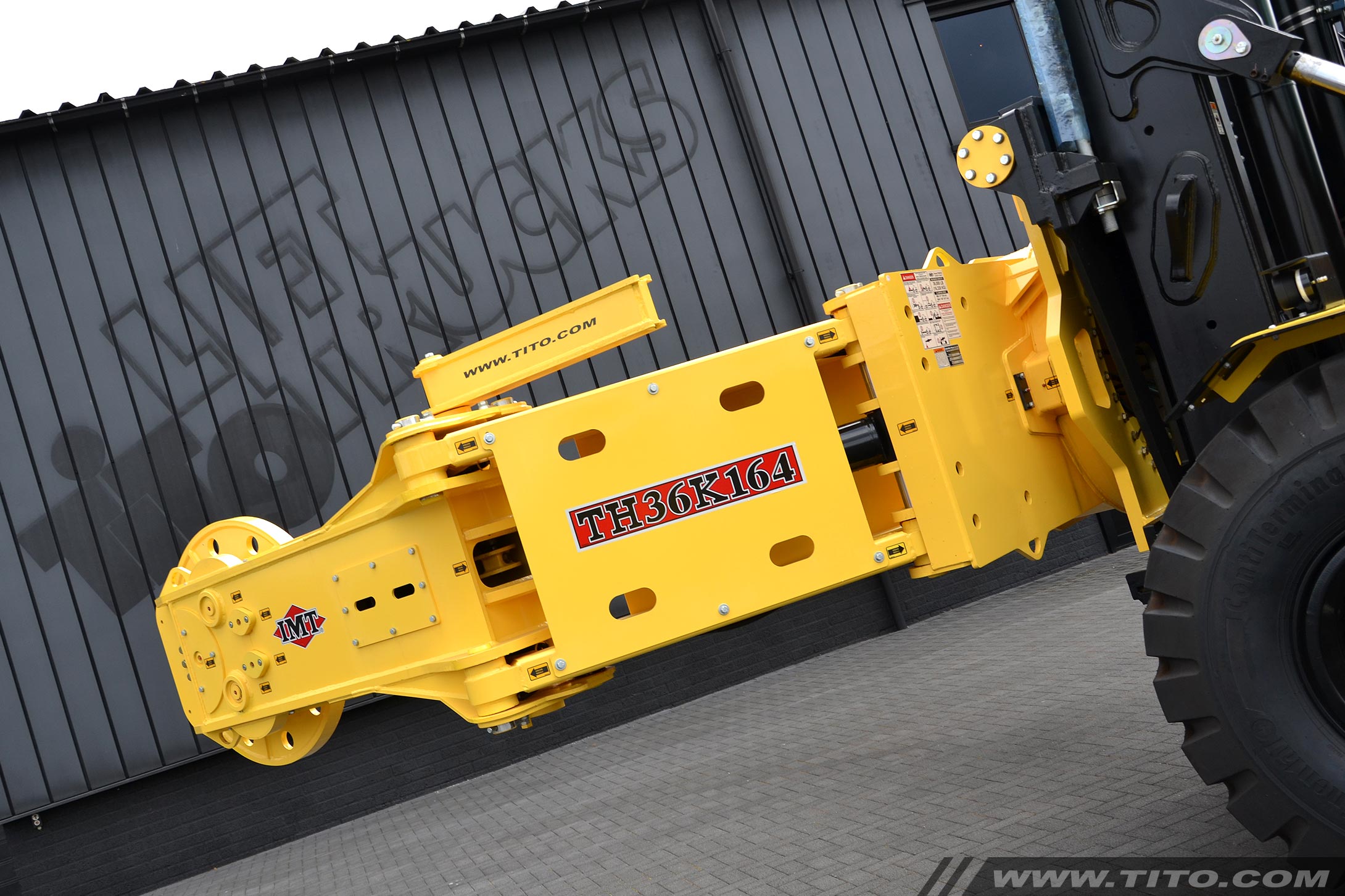

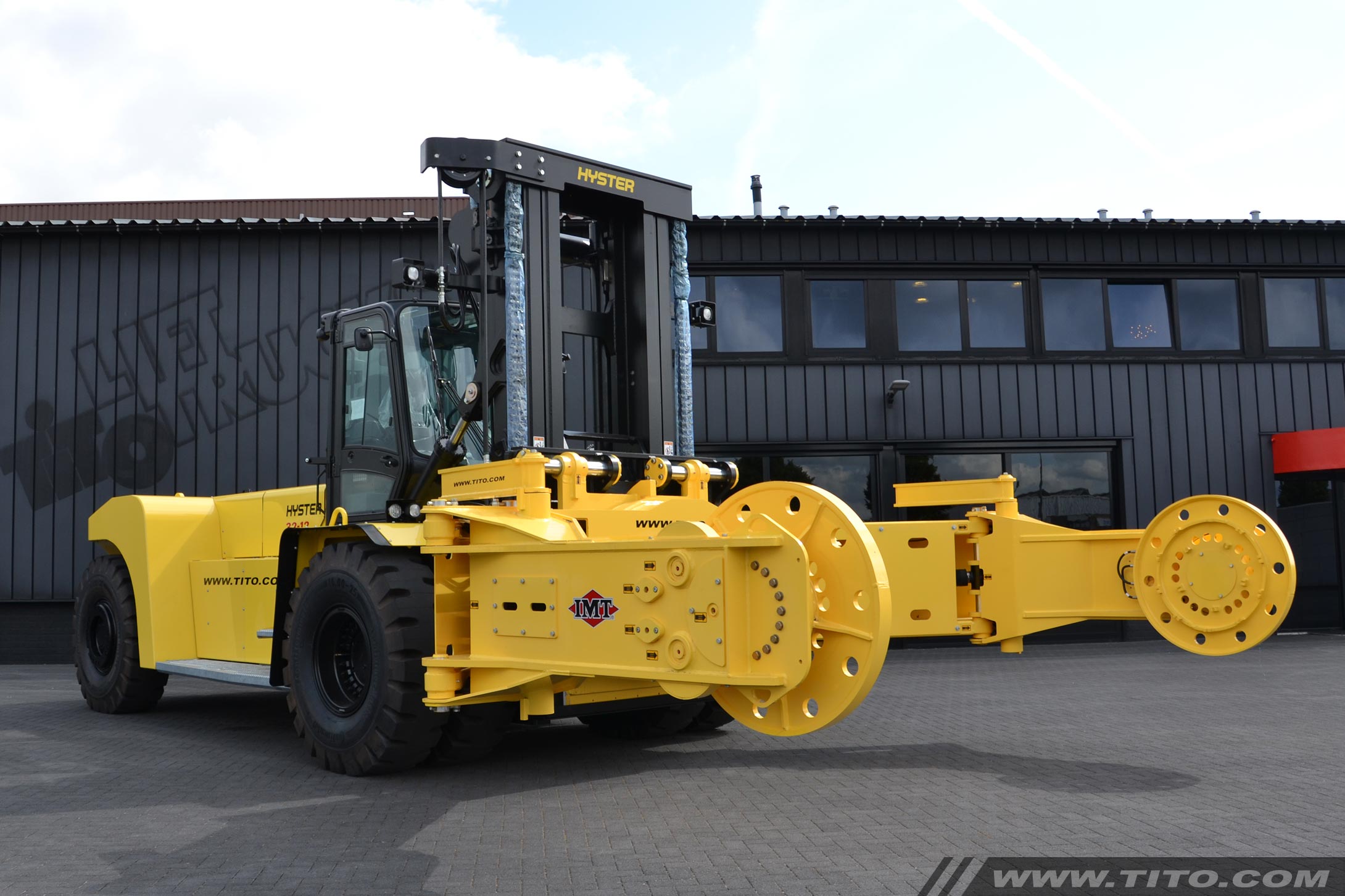

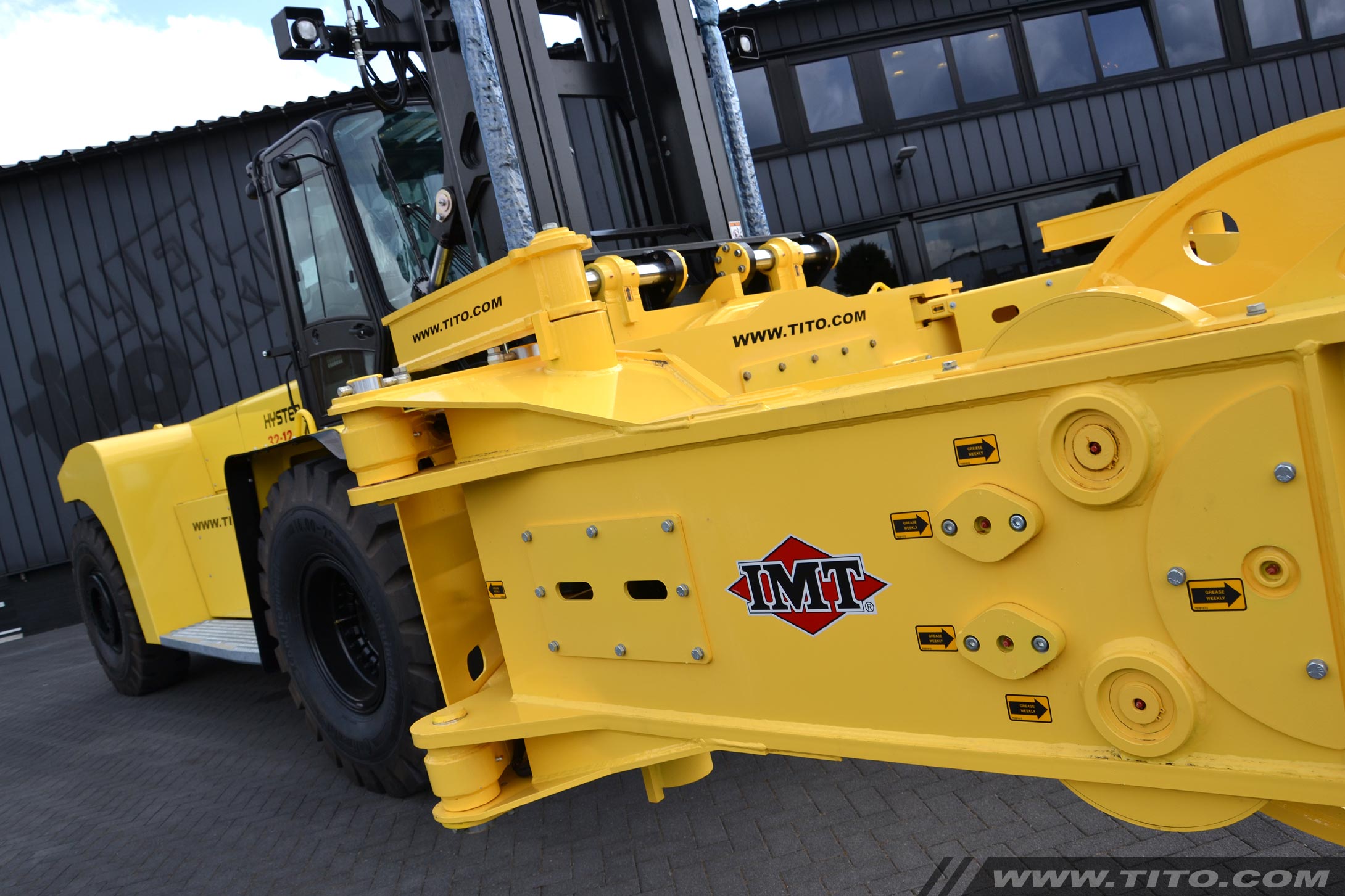

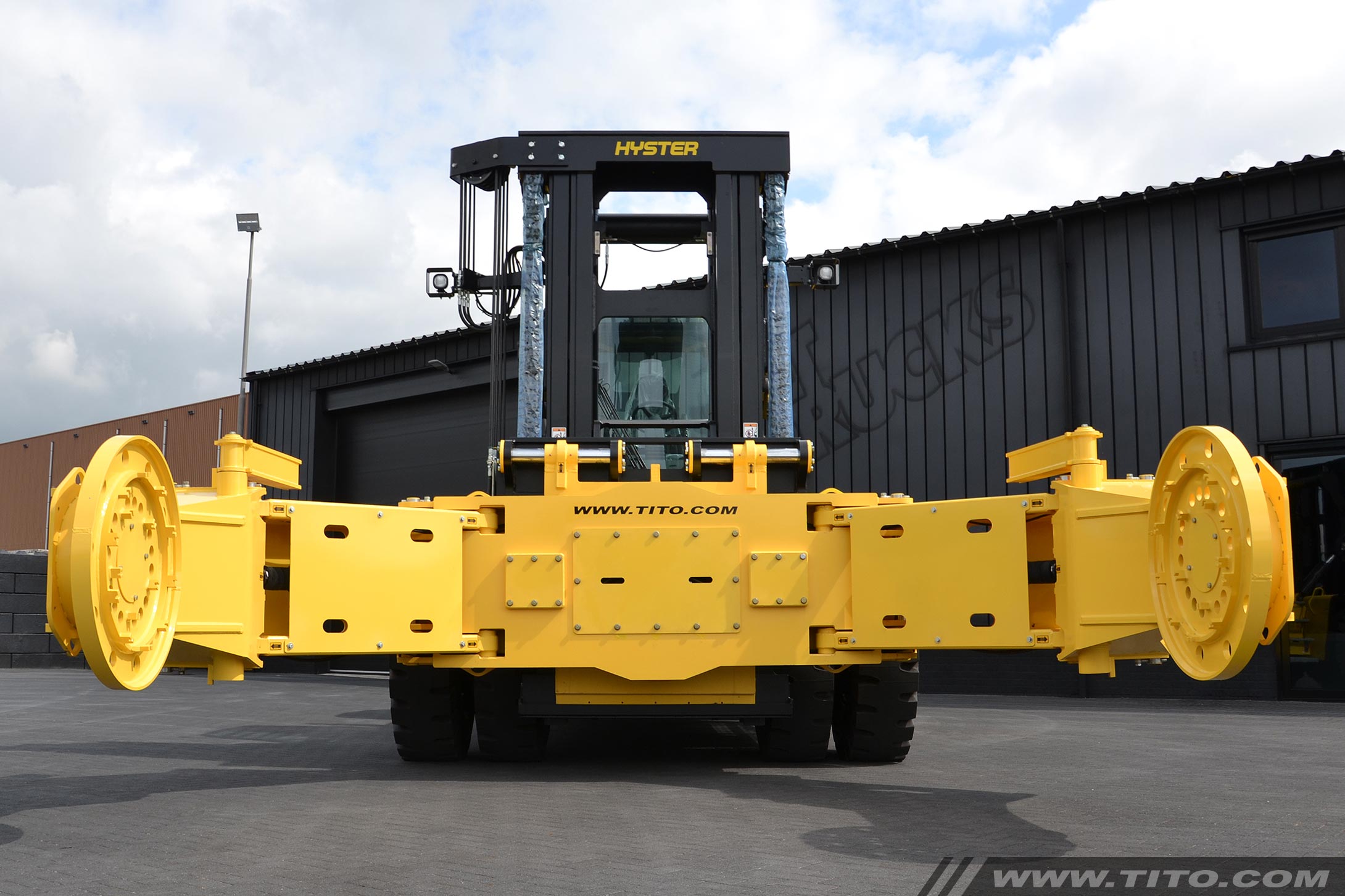

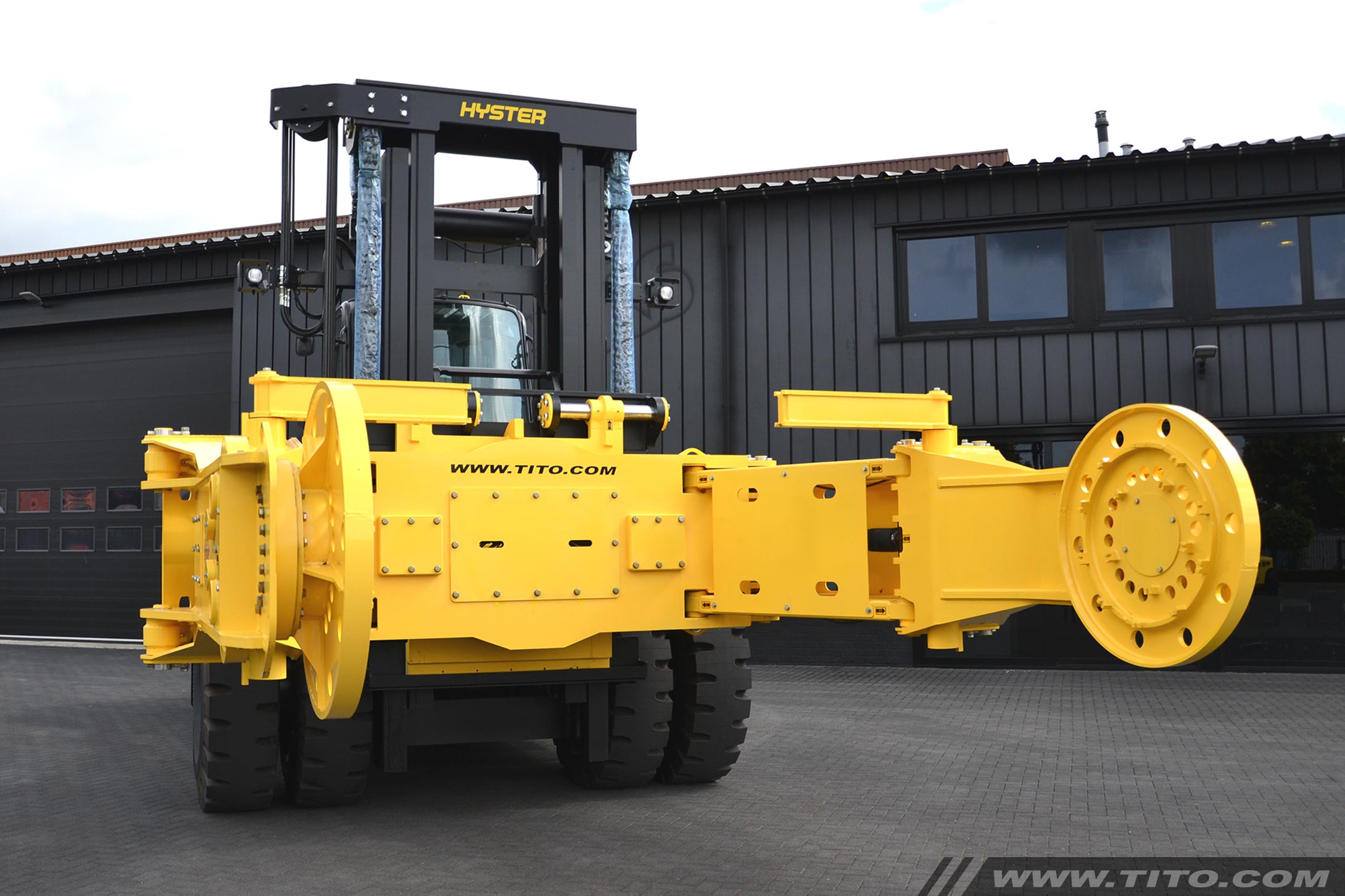

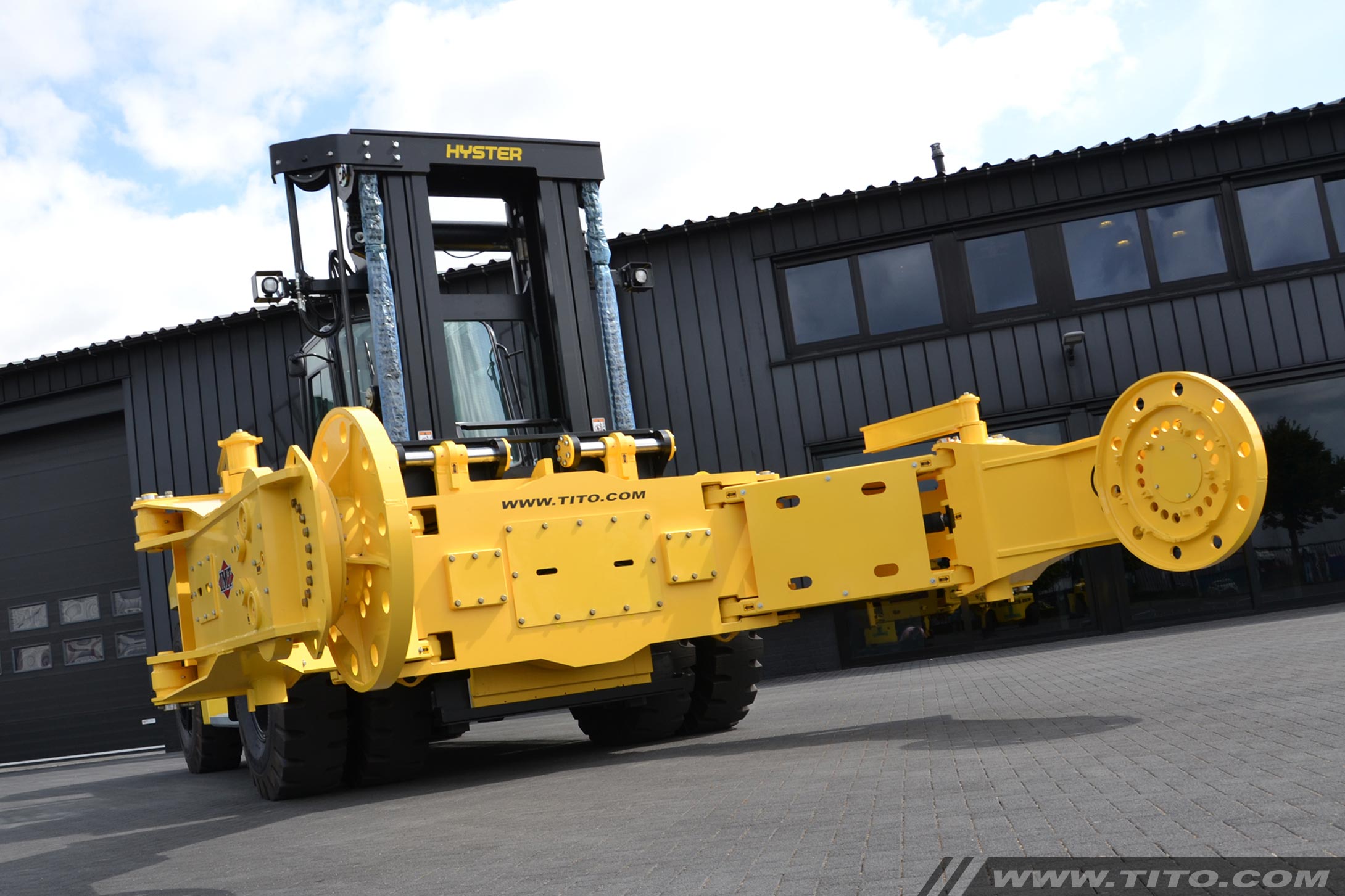

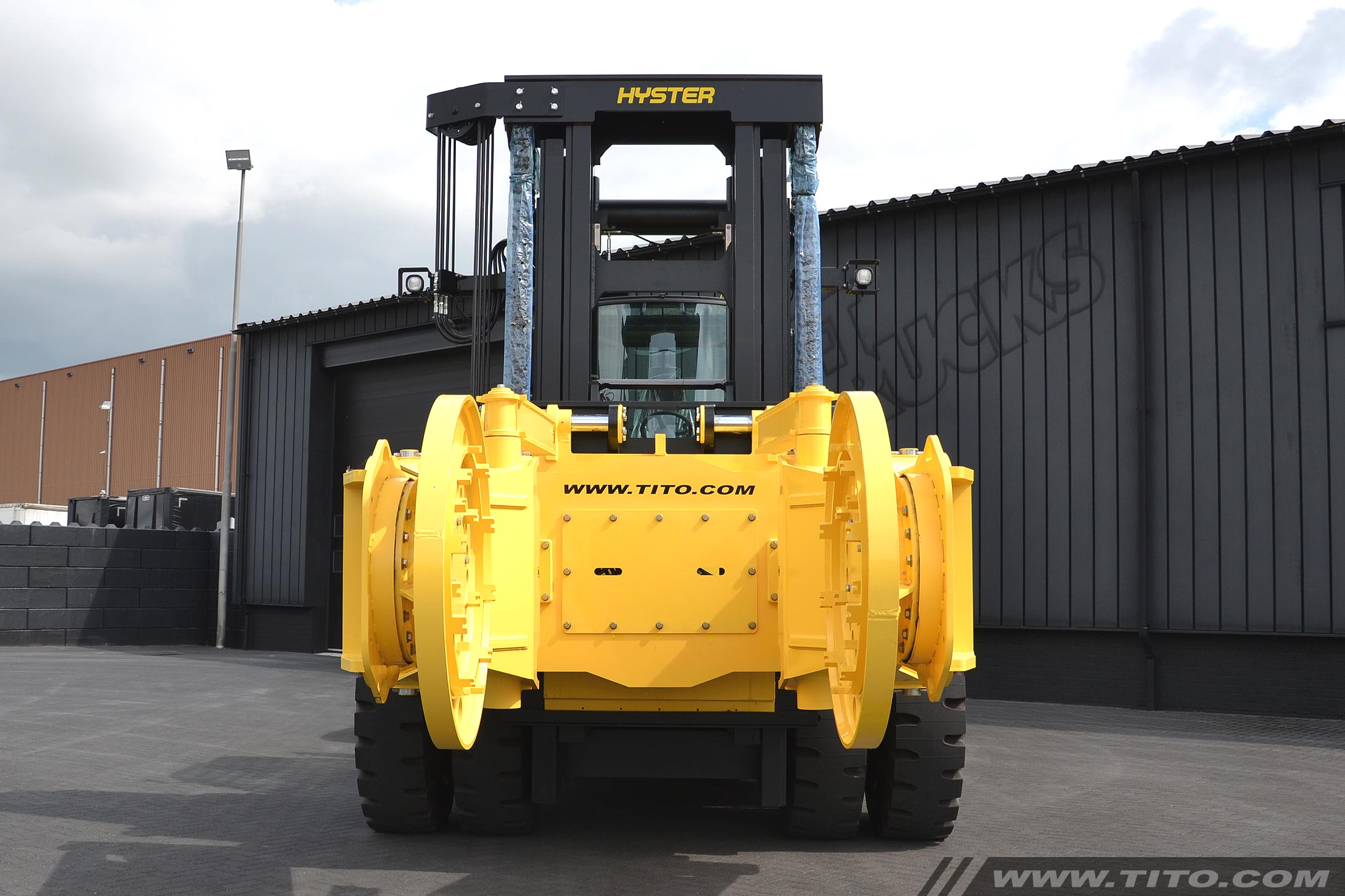

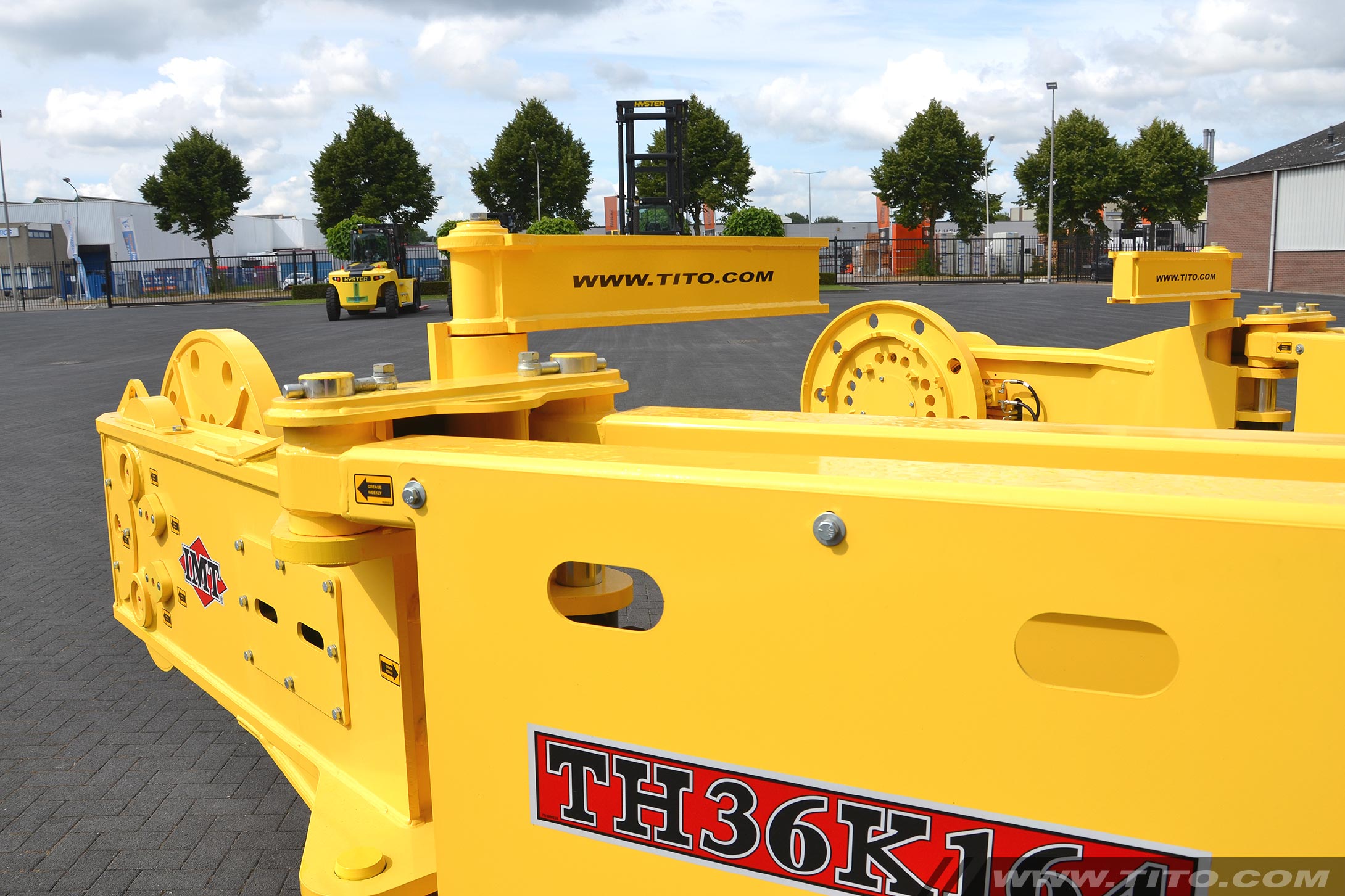

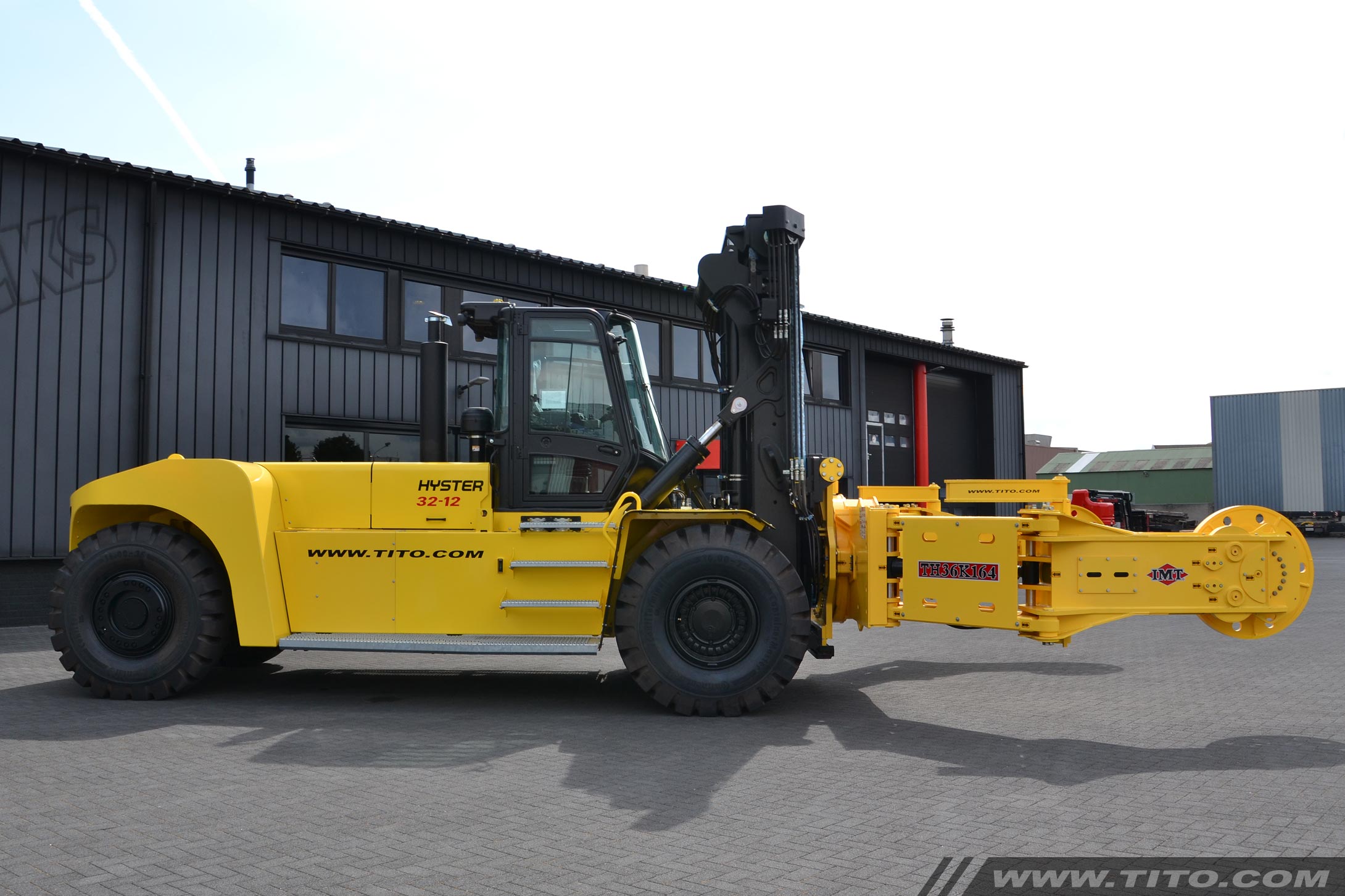

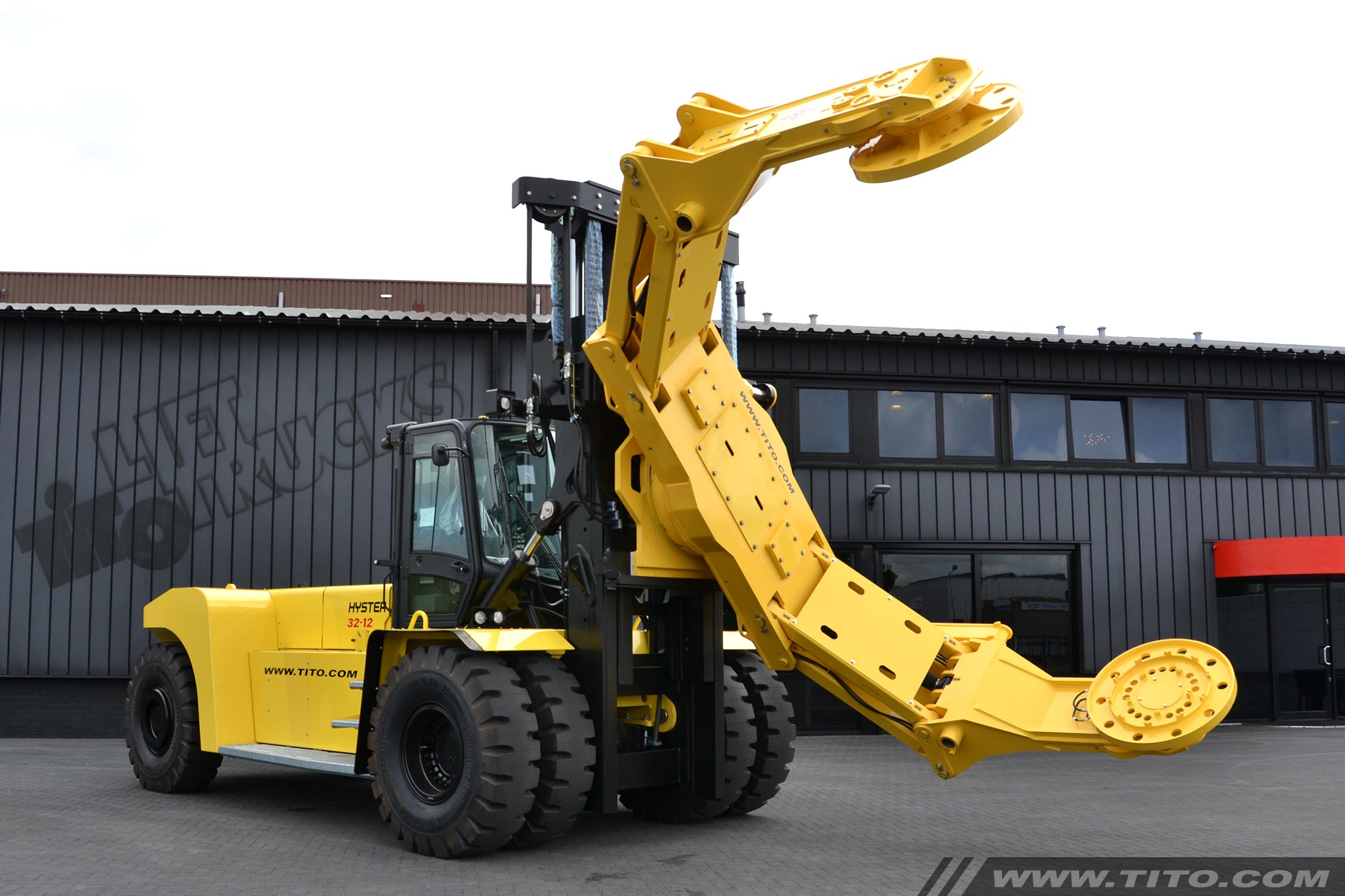

Complete with an IMT TH36K164 Long Arm tire manipulator (integral mounted) to change the tires/wheels of the mining haul trucks. Clamping span 121.9 cm - 416.6 cm, capacity 16.300 kg. 100 degree body rotation and 360 degree rotating pads.



Mining industry, tire industry, tire shops



Shipping dimensions

Basic
11.10 x 3.45 x 4.07 m, 50.000 kg
