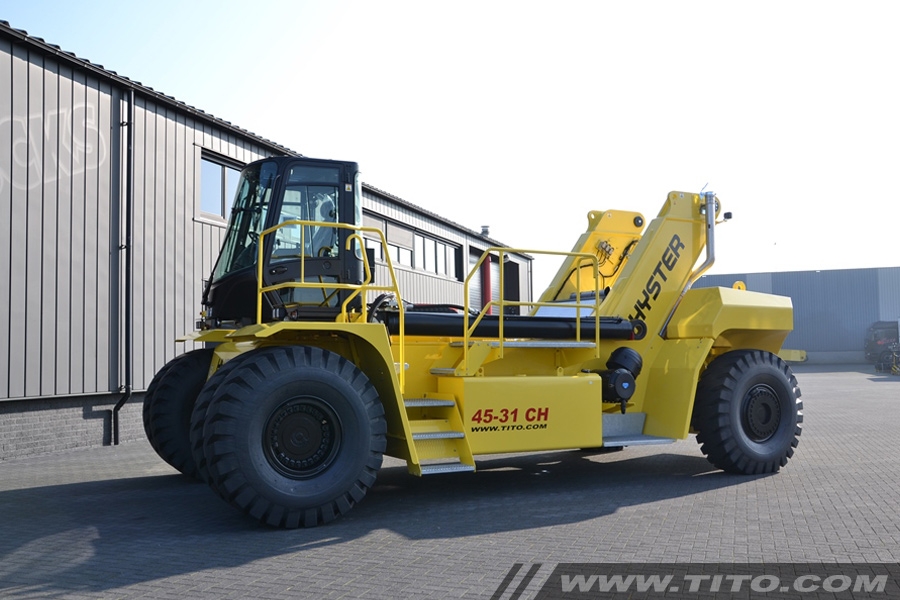

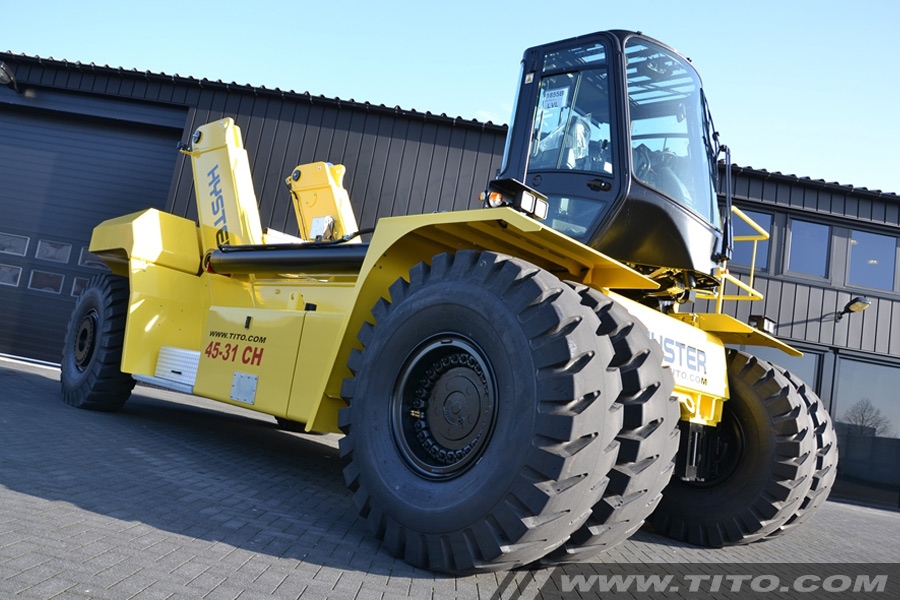

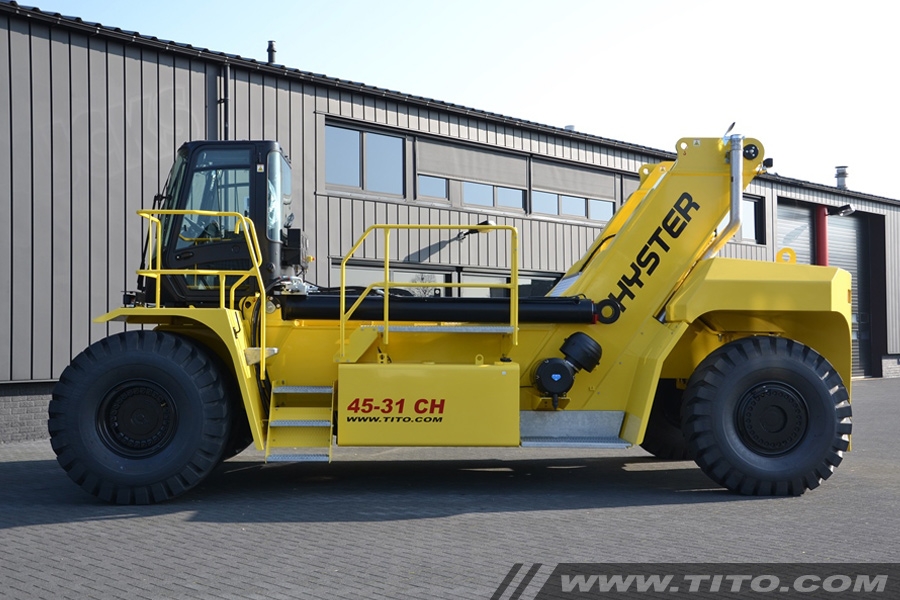

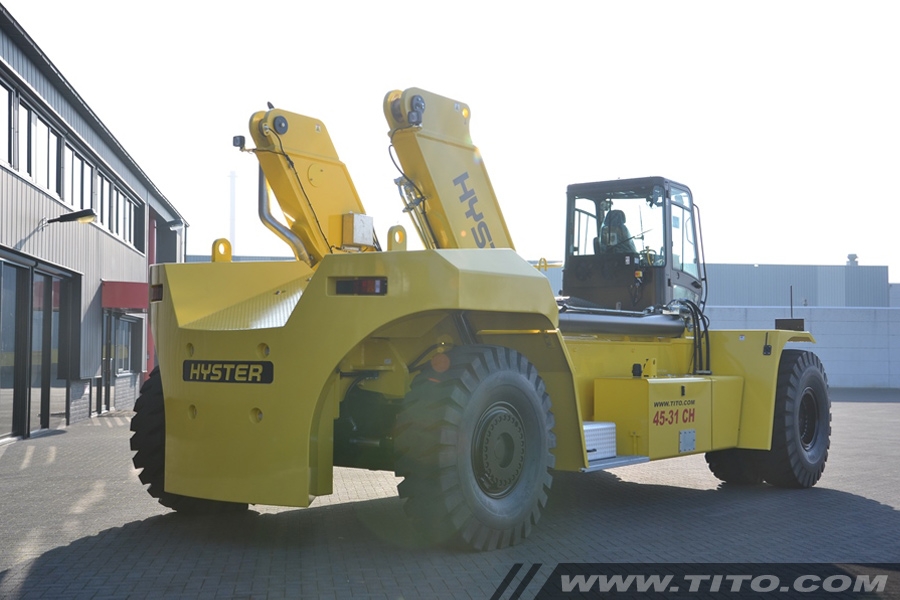

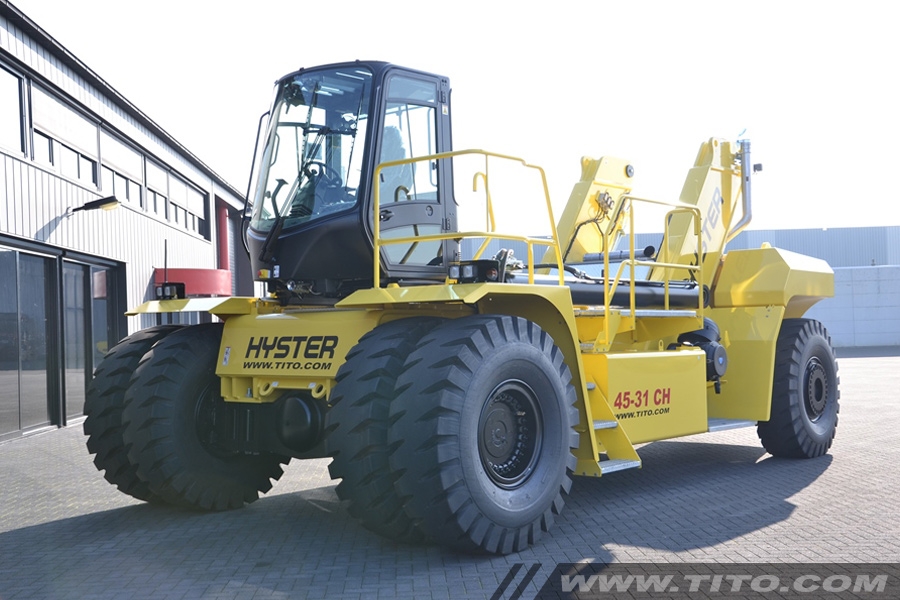

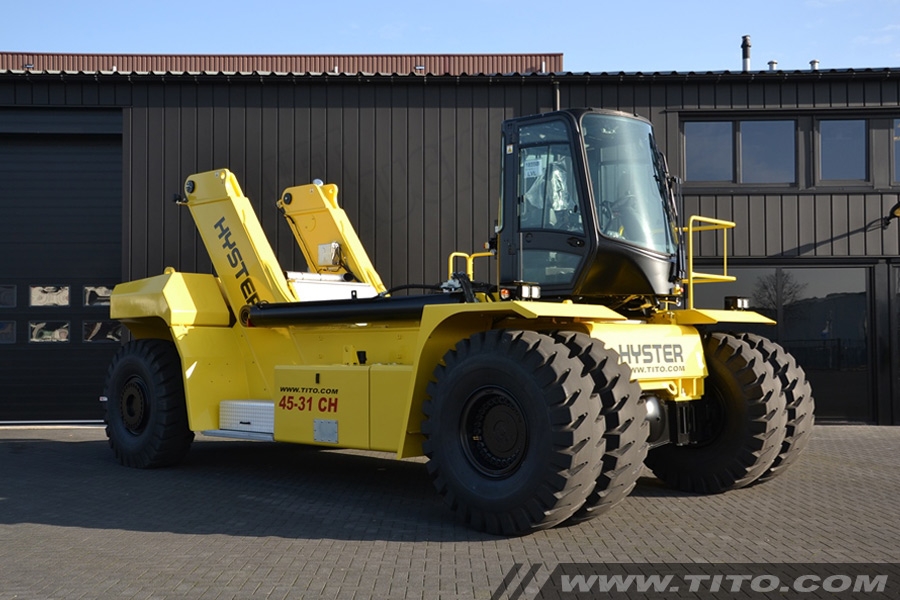

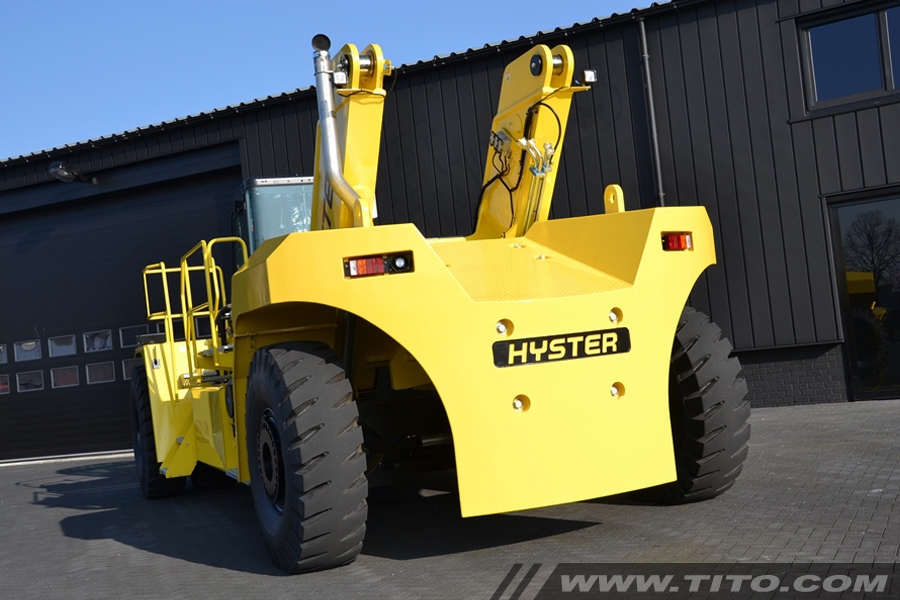

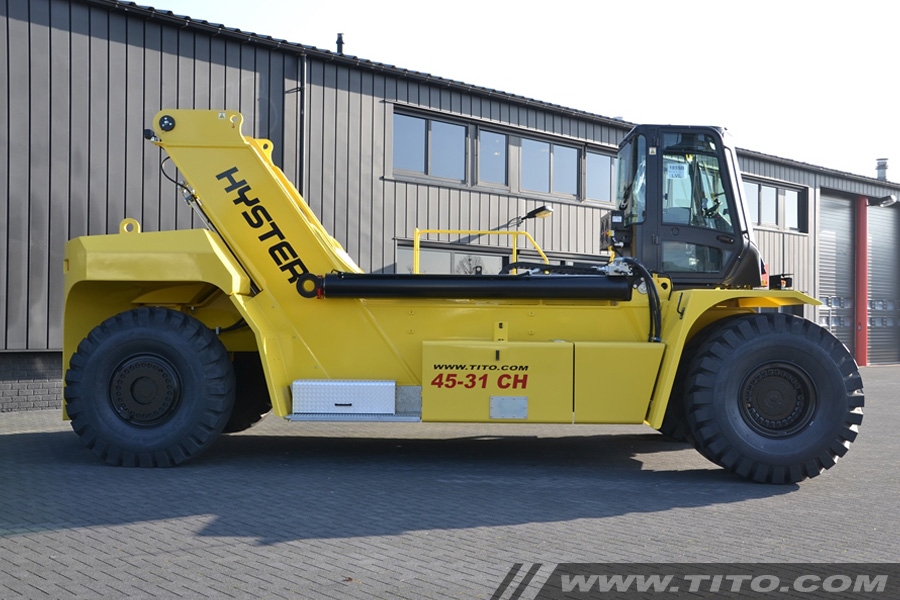

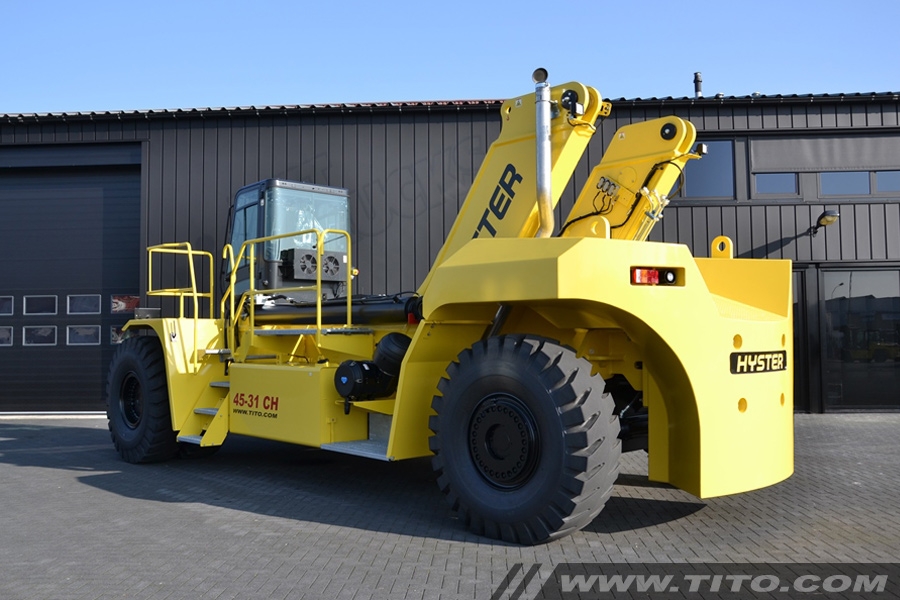

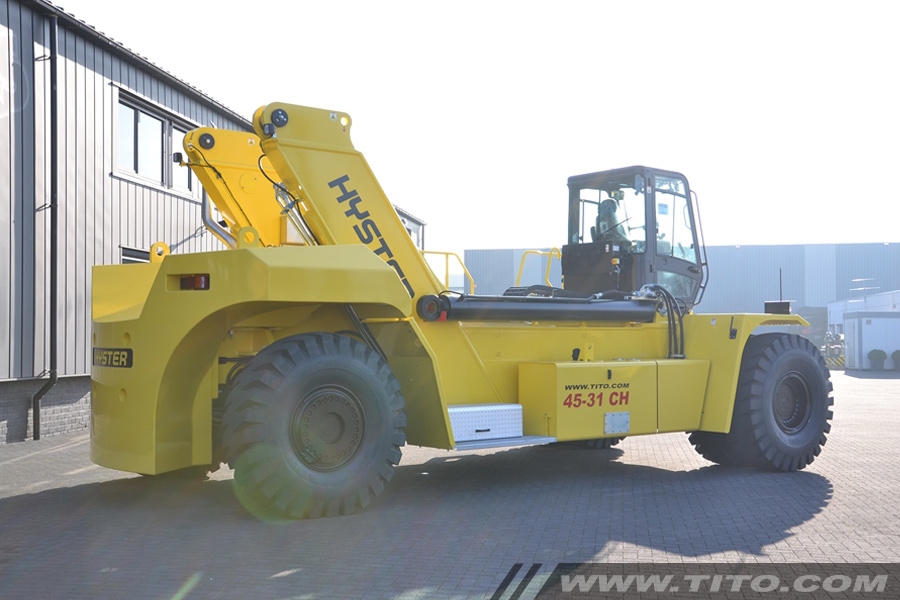

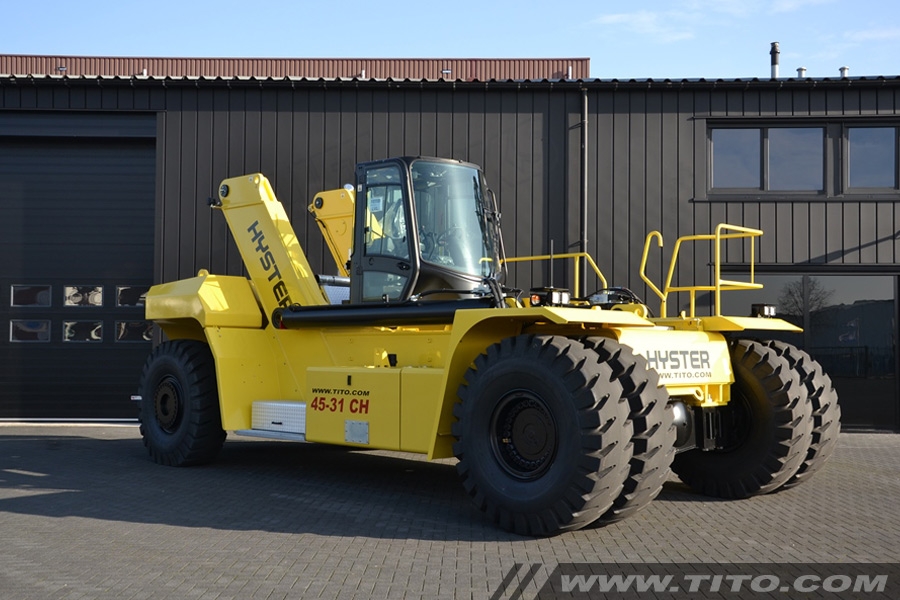

SOLD // New Hyster Reach Stacker RS45-31CH

General

TLT#

90028

Brand

Hyster

Model

RS45-31CH

Year

2013

Type

Reachstacker

Service weight

72.020 kg

Capacity

1st row 45.000 kg, 2nd 31.000 kg, 3rd 16.000 kg

Condition

New

Hour meter reading

6

Mast

Mast

2-Stage telescopic boom

Lift height

15.260 mm

Closed Height

4.700 mm

Stacking height

5 high 8'6

Side-shift

Integrated in spreader

Spreader

Telescopic Elme spreader for 20’-40’ ISO containers

Driveline

Engine

Cummins QSM11 (non EU)

Engine type

Stage 3A, 10.8L 6 cylinder in-line turbo charged diesel

Engine Output

300 Hp / 224 kW

Transmission

Dana / Spicer Off-Highway TE-27

Transmission type

4-Speed powershift

Drive axle

Kessler D102 PL341/528 with double reduction

Brakes

Oil-immersed wet disc brakes

Tires

Tires front

Goodyear 18.00 x 25 pneumatic

Condition front

100%

Tires rear

Goodyear 18.00 x 25 pneumatic

Condition rear

100%

Cabin

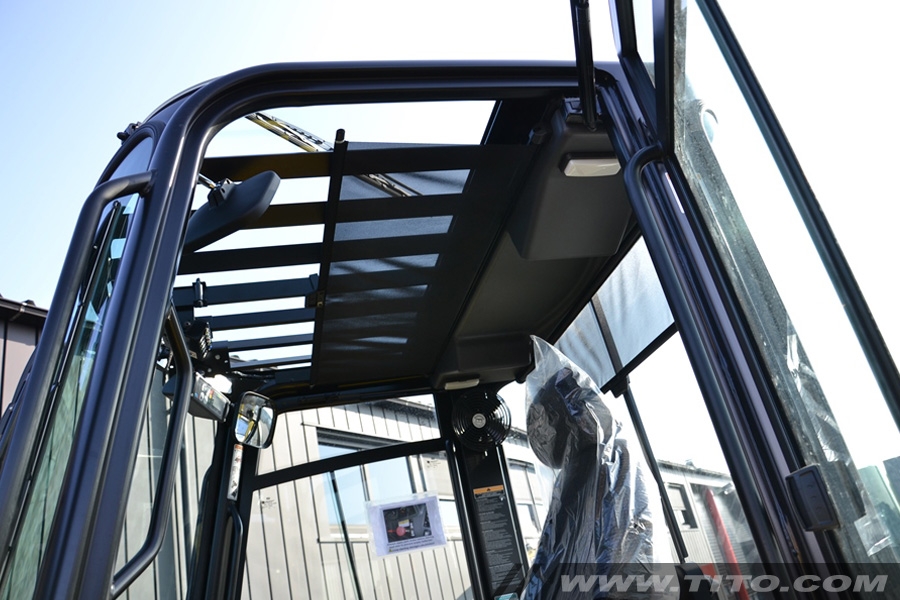

Cabin

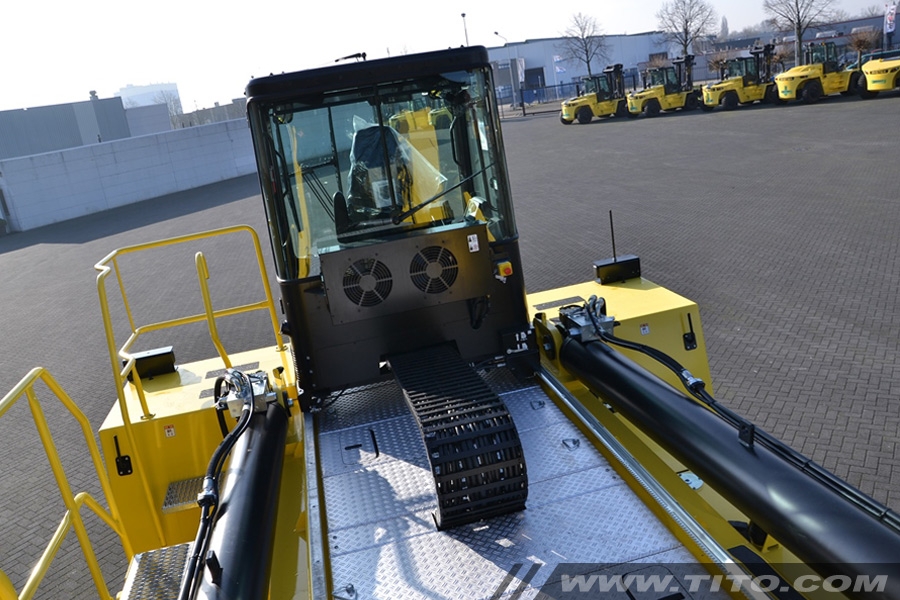

Partial sliding cabin with heater, wipers and air-conditioning

Heater

Yes

Air Conditioning

Yes

Lights

Lights

Complete light kit

Extra’s

Extras More information about Hyster reach stacker. More information about used reach stacker.

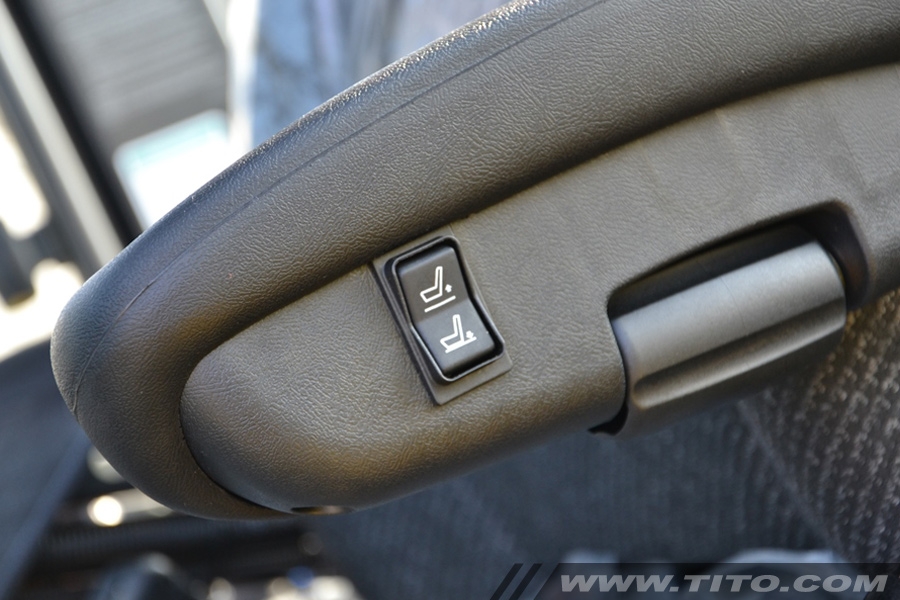

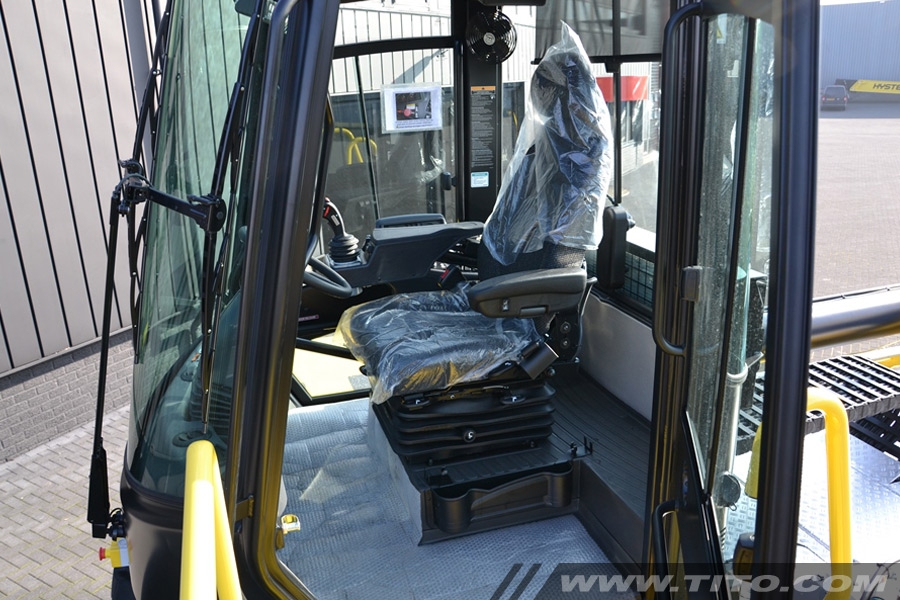

Additional info Mechanical suspended driver’s seat with high backrest, load moment protection system with load weight indicator display, telescopic Elme spreader for 20’-40’ ISO containers, wheelnut protection on steering wheels.

Key applications Container handling / Container stacking applications up to 5-high and 3-rows deep.

Shipping dimensions

Basic

(RoRo) 8.37 x 4.22 x 3.82 m, 48.160 kg

Spreader

(static) 6.04 x 2.42 x 1.95 m, 9.200 kg

Boom

(static) 11.30 x 2.40 x 1.91 m, 16.000 kg
