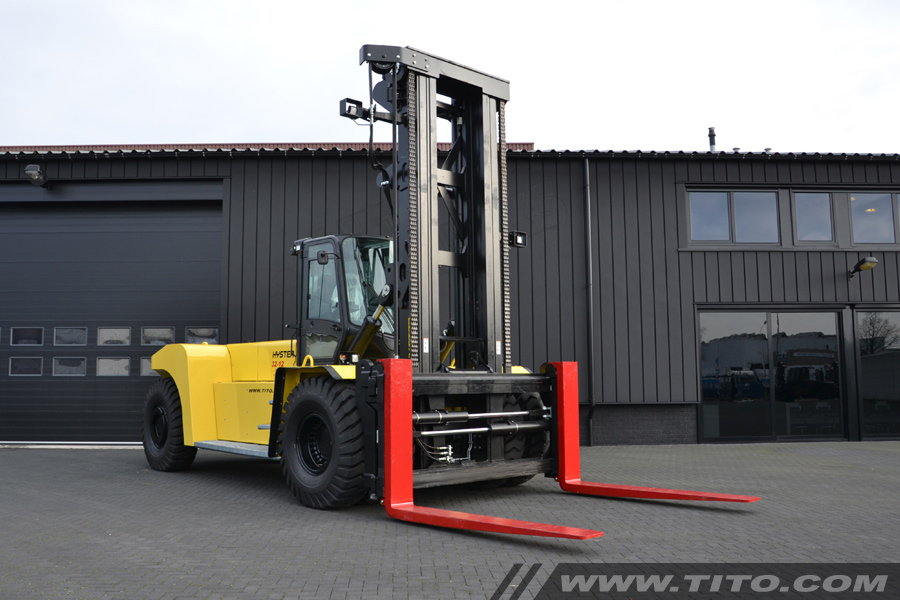

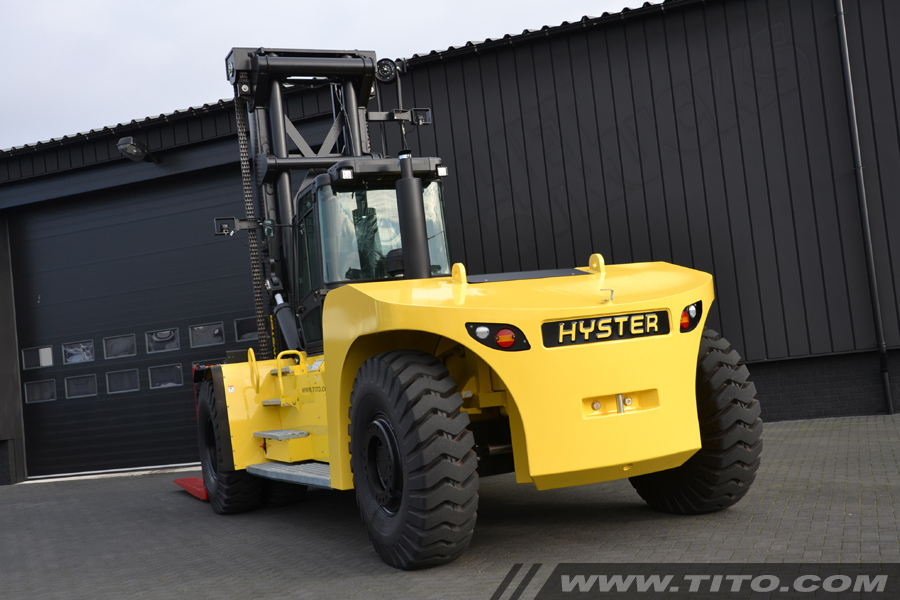

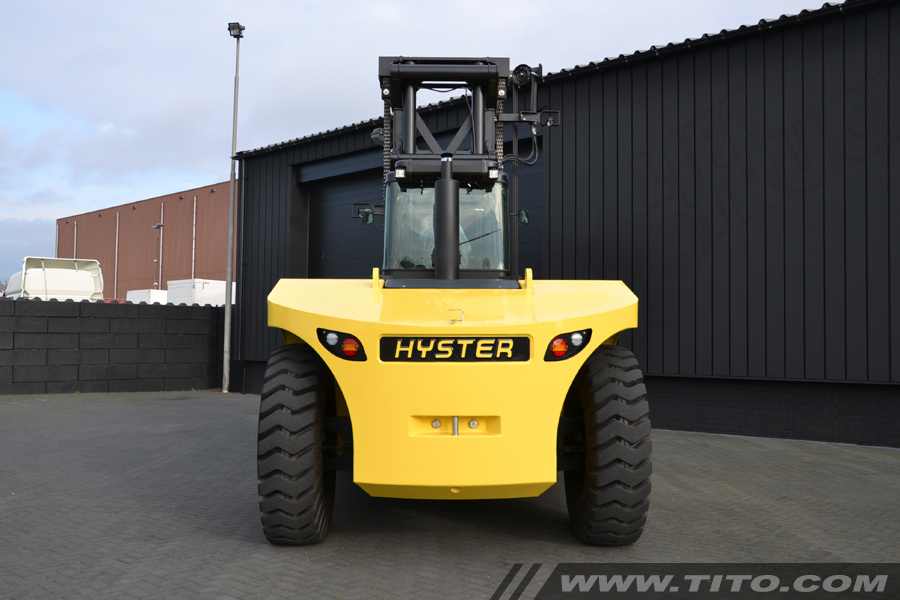

SOLD // New 32 ton Hyster forklift for sale
Hyster H32XM-12
+31 24 378 11 11
titolifttrucks
Print this pageGeneral
- TLT#
- 64020
- Brand
- Hyster
- Model
- H32XM-12
- Year
- 2015
- Type
- Forklift
- Service weight
- 46.010 kg
- Capacity
- 32.000 kg
- Load center
- 1.200 mm
- Condition
- New
- Hour meter reading
- 5

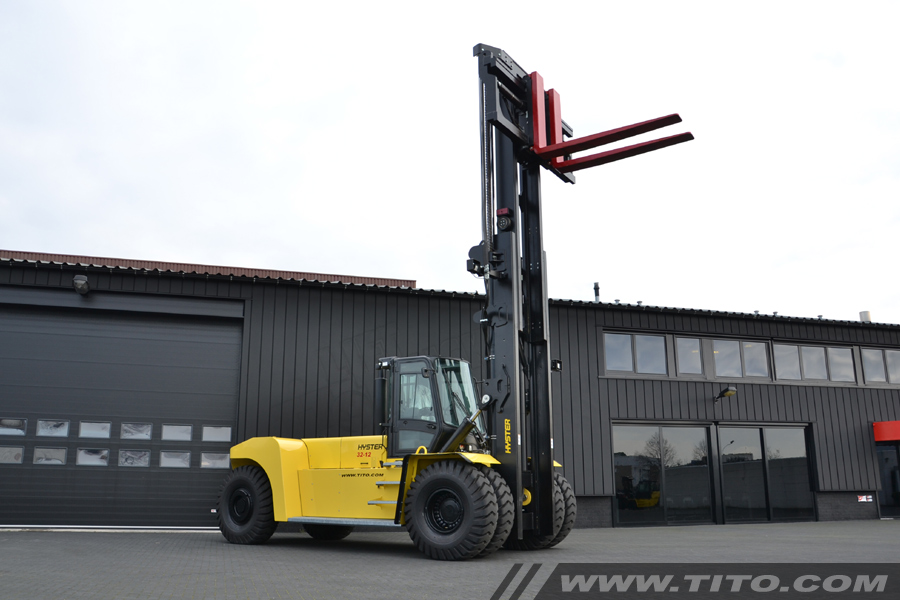

Mast
- Mast
- 2-Stage
- Lift height
- 6.810 mm
- Closed Height
- 5.445 mm
- Free-lift
- 0 mm
- Forks
- 2.440 mm Hook-Type Quick-Disconnect
- Side-shift
- Yes

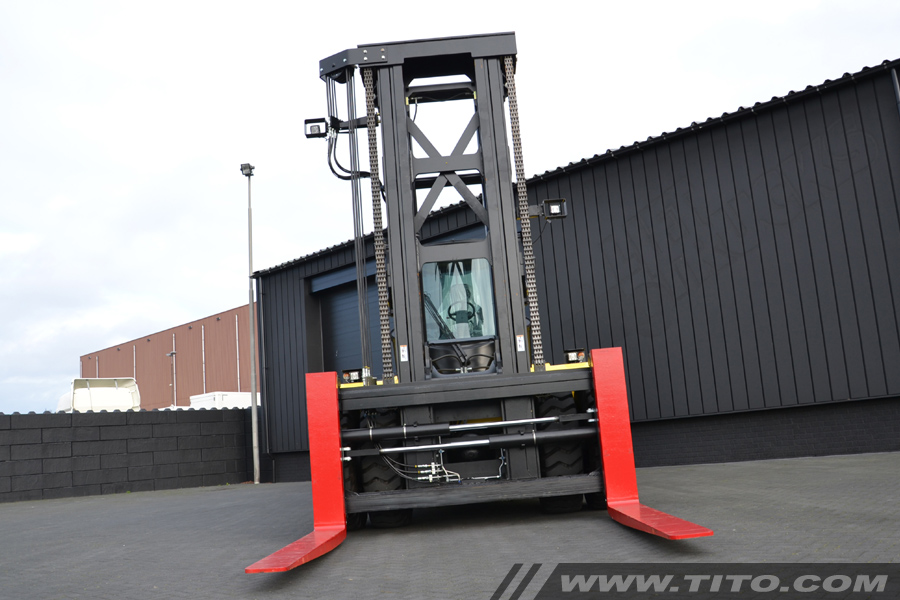

- Fork-positioner
- Yes
Driveline

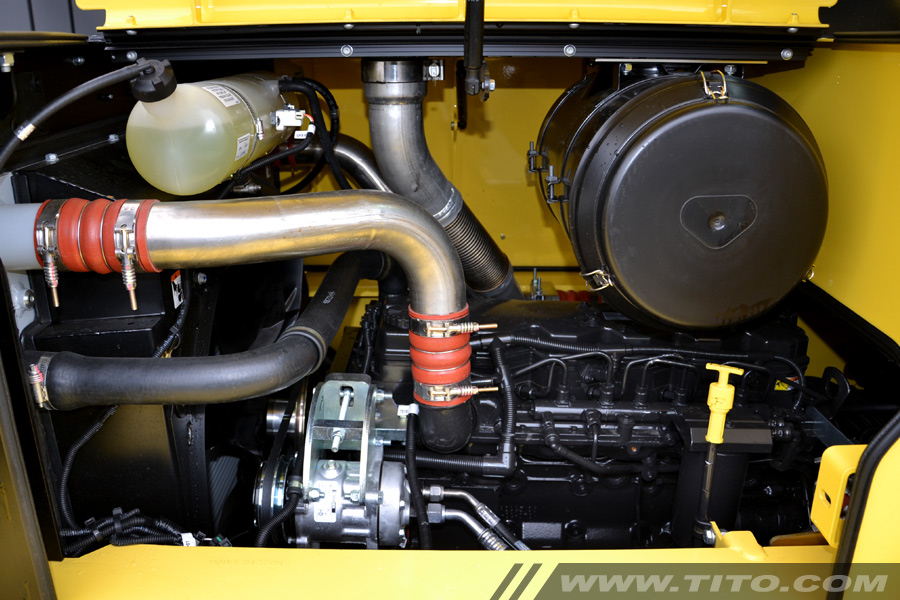

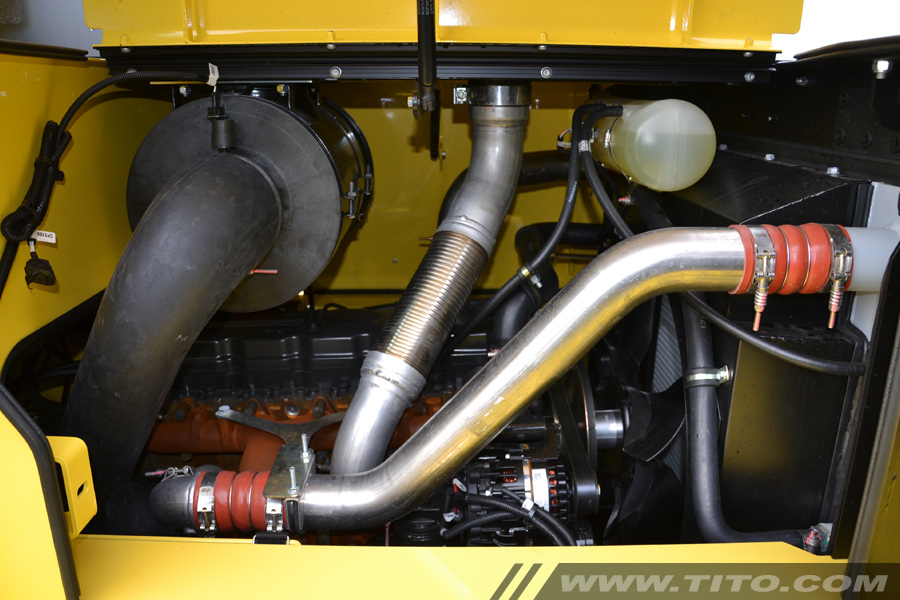

- Engine
- Cummins QSC6.7 (non EU)
- Engine type
- Stage 3A, 6.7L 6 cylinder turbo charged diesel
- Engine Output
- 260 Hp
- Transmission
- ZF 5WG211
- Transmission type
- 3-speed autoshift
- Drive axle
- AxleTech PRC-3806 with double reduction
- Brakes
- Oil-immersed wet disc brakes
Tires
- Tires front
- Bridgestone 16.00 x 25 pneumatic
- Condition front
- 100%
- Tires rear
- Bridgestone 16.00 x 25 pneumatic
- Condition rear
- 100%
Cabin
- Cabin
- Full Hyster cabin

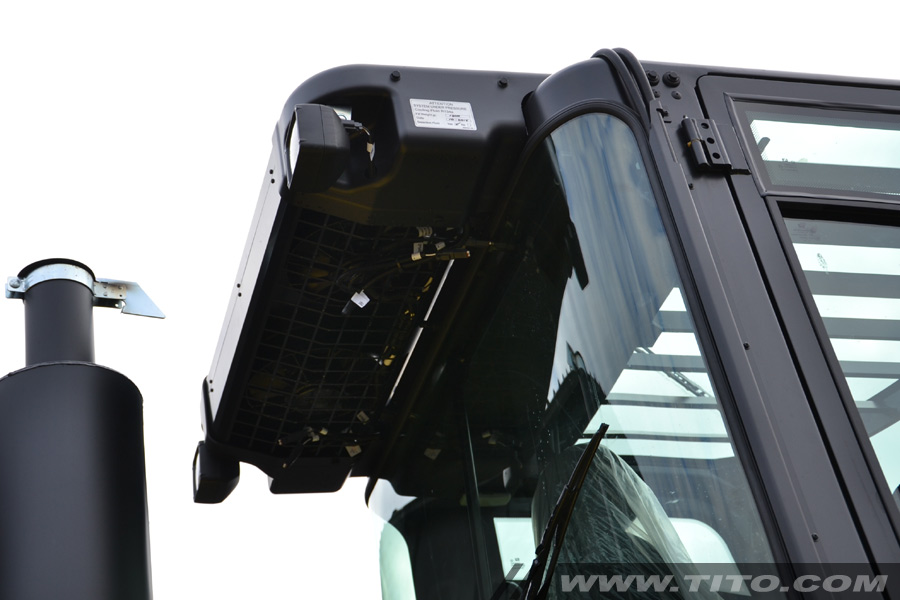

- Heater
- Yes
- Air Conditioning
- Yes
Lights
- Lights
- Complete light kit with orange flash light
- Back-up alarm
- Yes
Extra’s

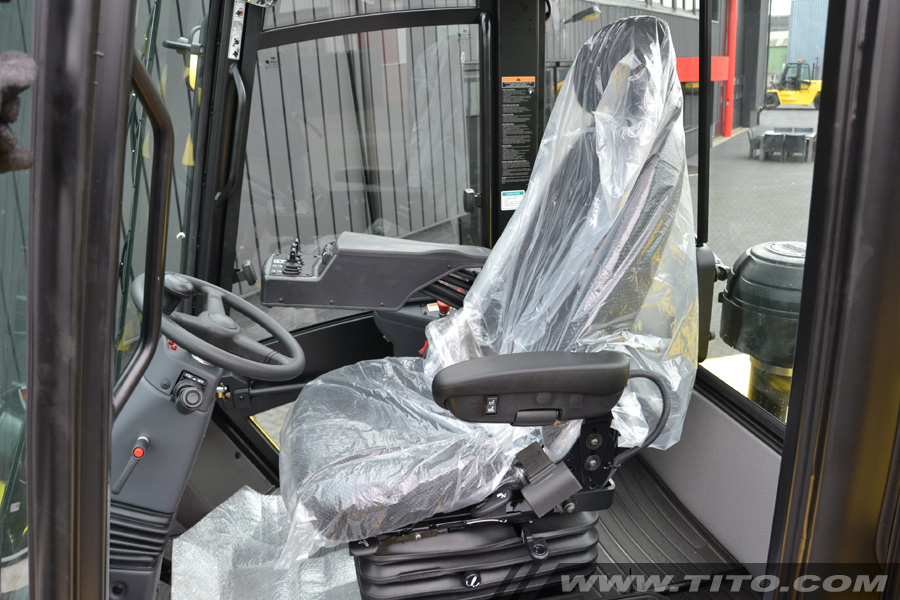

‘Zero in-to-in’ fork-positioner, powered tilting cabin (for easy maintenance), Sears DeLuxe air suspended seat with high backrest. Optional available with a 25 tonne Quick-Disconnect coil ram, for handling steel coils. Capacity 25.000 kg, length 1.800 mm, diameter 355 mm.

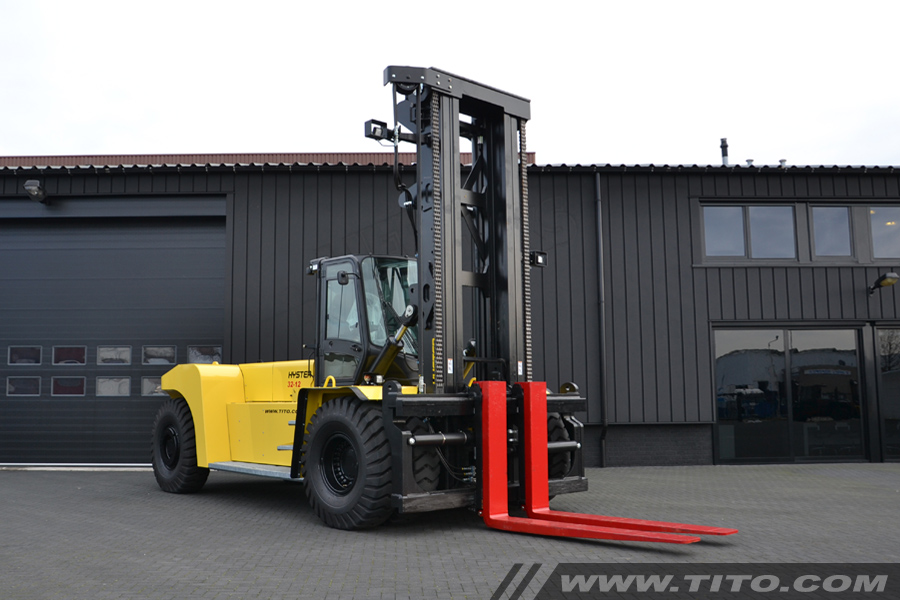

‘Zero in-to-in’ fork-positioner: In the Inner FP position the two forks can then be moved together to handle one coil. Sideshift is still available, even at ‘zero in-to-in’.
Stevedoring, general cargo handling, steel, steel coils, concrete, marble, wood.
Shipping dimensions
- Basic
- 6.80 x 3.45 x 3.49 m, 34.000 kg
- Mast
- 5.13 x 2.35 x 1.12 m, 7.300 kg
- Forks
- 2.65 x 0.80 x 1.80 m, 1.880 kg
- Carriage
- 3.20 x 1.85 x 0.97 m, 3.743 kg
